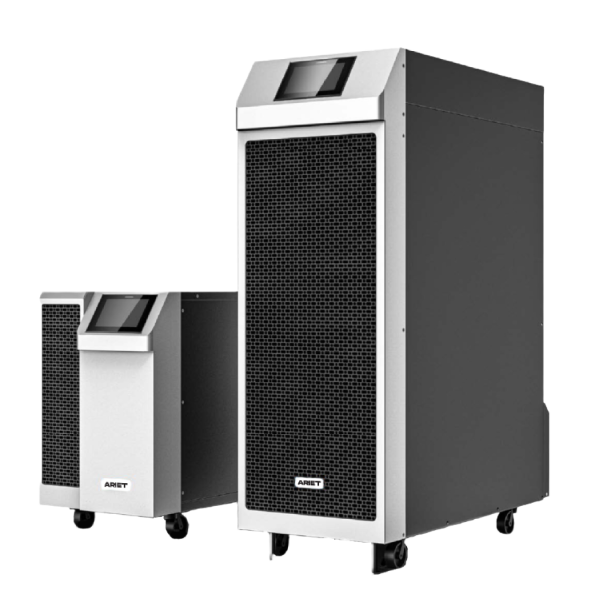

Ariet ARIKSO VT3316S

Our ARIKSO VT3316S UPS delivers unrivaled reliability and maximum uptime for your critical systems. With it, you get high efficiency and extended lifespan for our equipment, along with flexible configuration and easy maintenance, making it the ideal solution for seamless operation.

Exceptional reliability

Zero downtime assurance

Extended battery life

Model Details

✅ High power density design

✅ N+X parallel redundancy, supporting up to 4 units maximum

✅ Online double conversion with DSP control

✅ Output harmonic distortion: ≤2%

✅ Wide input voltage range: 190/330 – 276/478 VAC

✅ Wide input frequency range: 40 – 72 Hz

✅ Maximum charging current up to 20A (configurable)

✅ 5-inch LCD display

✅ Generator compatible

✅ Output can handle 100% unbalanced load

✅ Protection functions: short circuit, overload, overheat, battery overcharge and over-discharge, low output voltage, and fan fault alarm

✅ Multiple communication interfaces: USB, RS232, RS485, parallel port, dry contact, intelligent slot, SNMP card (optional), relay card (optional), battery temperature sensor (optional)

Power:16KVA/16KW
Nominal Voltage (V):230/400 VAC (selectable 220/380, 240/415)
Operating Voltage Range:190/330–276/478 V (-15%, +20%) at 100% load,
116/201–276/478 V (-50%, +20%) at 50% load
Operating Frequency Range:40 ~ 72 Hz (50/60 Hz auto-sensing)
Input Power Factor:≥0.99
Bypass Voltage Range:Max. Voltage: 220 V: +25% (optional +10%, +15%, +20%)
230V:+20% (optional+10%,+15%)
240V:+15% (optional+10%)
Min. Voltage:-45% (optional -20%, -30%)
Harmonic Distortion (THDi):≤3% Linear Load
Output Voltage:380 VAC/220 VAC +/- 1% (selectable 400/415 VAC)
Voltage Regulation:±1%
Output Power Factor:1.0
Output Frequency:50/60 Hz
Transfer Time:0ms (AC mode to battery mode), 0ms (inverter to bypass)
Output Waveform:Pure Sine Wave
Crest Factor:3:1
Harmonic Distortion (THDv):≤2% Linear Load
Overload:102–110% load for 60 min, 111–125% load for 10 min, 126–150% load for 1 min, >150% load for 150 ms at 40 ℃
Efficiency:Up to 96% in online mode; >99% in ECO mode
Voltage (standard):320 V~607 V, default 432 V
Battery Type:VRLA/NiCd/Lithium
Battery Quantity:40pcs*9Ah
Bypass Voltage:Nominal Voltage 230/400 V (selectable 220/380, 240/415 V), Tolerance: 195/338 – 264/458 V (±15% of nominal, selectable up to ±20%)
Operating Temperature:0-40°C
Storage Temperature:-25 ~ 55°C (without battery)
Altitude:<1000 m, derating above >1000 m
Humidity Range:0~95% (non-condensing)
Noise Level:<=65 dBA at 1m distance at 75% load (ISO7779)
Safety Standards:IEC/EN 62040-1; EMC IEC/EN 62040-2; Performance IEC/EN 62040-3; Quality ISO90001, ISO14001; Certification CE
EMC:IEC/EN62040-2, IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5,
IEC61000-4-6, IEC61000-4-8
EN 50091-1, EN 50091-2, EN 55022 Class A, EN 55024, EN 60950, GOST, IEC 60950, VDE.
Dimensions, WxDxH (mm):330x699x521

Why Choose ARIET ARIKSO Three-Phase Series:

  • Three-level IGBT PWM control technology ensures high efficiency: up to 96% in Online mode and up to 99% in ECO mode.
  • Unity output power factor (PF=1) delivers maximum active power.
  • Tower UPS with modular design allows for a Mean Time To Repair (MTTR) of less than 30 minutes.
  • Higher power density significantly reduces footprint by up to 50%.
  • Powerful charger drastically cuts down battery charging time.
  • Predictive component lifespan greatly enhances system reliability.
  • Optimized parallel technology completely eliminates single points of failure.
  • Optimized Battery Management (OBM) technology extends battery lifespan by up to 50%.
  • Operating time at 12 kW load – 21 minutes, operating time at 6 kW load – 7.5 minutes..

Ease of Operation & Maintenance

  • Features a full-color 5-inch touchscreen display complemented by an LED status indicator. This provides users with convenient access to monitor equipment operating status, facilitating straightforward operation and maintenance procedures.

Usage areas for the Ariet ARIKSO UPS:
🏢 Data Centers and Large Server Rooms
🏗️ Construction Firms
🏭 Industrial Facilities
🛡️ Financial Systems
