Name: 6GFM-55 12V 55Ah (VRLA) | Official website of Ariet Power
SKU: AGM 6GFM-55

Description

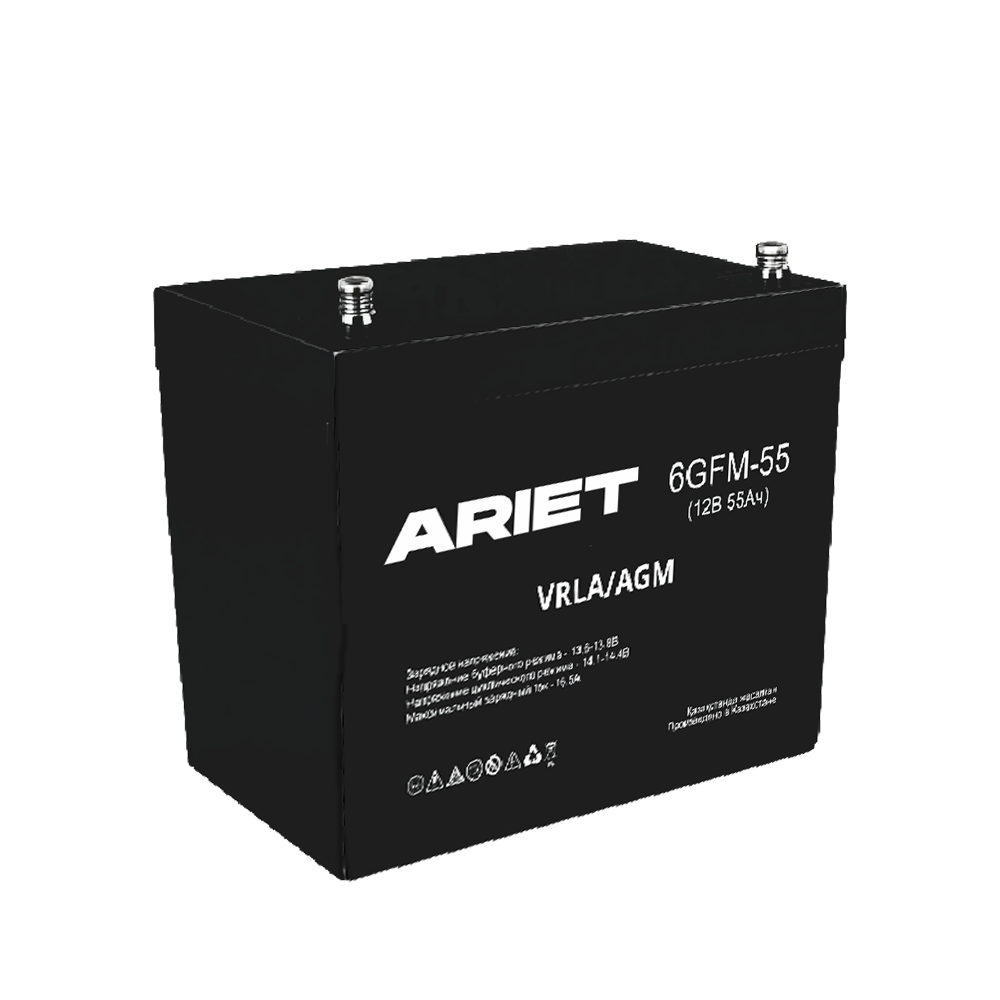

The ARIET 6GFM-55 battery is manufactured using AGM (Absorbent Glass Mat) technology and is designed for use in backup and uninterruptible power supply systems. Its sealed VRLA design ensures that up to 99% of the gas released is recombined, making the battery safe and maintenance-free.

The battery’s nominal voltage is 12 V, and its capacity is 55 Ah. Thanks to the high density of the grid structure and the use of high-quality materials, the battery offers stable performance, low self-discharge, and a long service life of up to 10–12 years in buffer mode.

The casing is made of durable, flame-retardant ABS plastic, which enhances operational safety. The internal resistance of a fully charged battery is approximately 7.0 mΩ, ensuring efficient energy delivery.

The battery is designed to operate over a wide temperature range: discharge from −20°C to +60°C, charge from −10°C to +50°C, and storage down to −20°C. It supports high charge currents of up to 16.5 A and maintains stable performance under various operating conditions.

The battery’s dimensions are 229 × 138 × 211 mm, with a height of 216 mm including terminals, and a weight of approximately 17.5 kg. The terminals are M6 bolts, ensuring a reliable connection.

Thanks to its high reliability, energy capacity, and safety, the ARIET 6GFM-55 battery is the optimal solution for professional backup power systems where stable and long-lasting equipment operation is required.

Technical Specifications
Nominal voltage	12 V
Number of cells	6
Design life at t = 20±5°C	10-12 years
Nominal capacity (25°C)
10-hour rate (5.5 A; 10.8 V/cell)	55 Ah
5-hour rate (9.2 A; 10.5 V/cell)	46 Ah
1-hour rate (35.1 A; 9.6 V/cell)	35.1 Ah
Self-discharge	3% of capacity per month at 25°C
Internal resistance of a fully charged battery (25°C)	7.0 mΩ
Operating temperature range
Discharge	-20...+60°C
Charge	-10...+50°C
Storage	-20...+50°C
Cycle use (14.1-14.4 V/cell)
Max. charge current	16.5 A
Temperature compensation	18 mV/cell
Standby use (13.6-13.8 V/cell)
Temperature compensation	18 mV/cell
Dimensions (±2mm)
Length, mm	229
Width, mm	138
Height, mm	211
Height over terminals, mm	216
Weight (±3%), kg	17.5
Terminal type	Bolt M6

Component	Material
Positive plate	Lead dioxide
Negative plate	Lead
Container	ABS
Cover	ABS
Valve	Acid-resistant rubber
Terminal	Brass
Separator	AGM
Electrolyte	Sulfuric acid solution

Technical Specifications - ARIET_6GFM-55_datasheet_En.pdf

Discharge Type / Time	5 min	10 min	15 min	30 min	45 min	1 hour	3 hours	5 hours	10 hours
CONSTANT CURRENT DISCHARGE (A) (AT 25°C)
9.6 V/cell	180	129	99.0	59.2	42.8	35.1	14.6	9.8	5.70
9.9 V/cell	170	124	95.4	57.4	41.6	34.2	14.2	9.6	5.65
10.2 V/cell	156	115	90.6	55.6	40.4	33.3	13.9	9.4	5.60
10.5 V/cell	144	106	85.8	53.8	39.2	32.5	13.6	9.2	5.55
10.8 V/cell	134	100	79.5	51.9	38.1	31.7	13.3	9.1	5.50
CONSTANT POWER DISCHARGE (W/cell) (AT 25°C)
1.60 V/cell	327	238	185	111	82.0	68.9	29.1	18.8	10.8
1.65 V/cell	309	225	177	109	80.4	67.3	28.5	18.6	10.8
1.70 V/cell	286	213	169	107	78.8	65.8	27.9	18.2	10.8
1.75 V/cell	263	200	162	105	77.2	64.3	27.3	18.0	10.8
1.80 V/cell	256	186	154	104	75.8	62.6	26.7	17.9	10.8
