Abellion M200 50 kW
Abellion M200 50 kW - Image 2
Abellion M200 50 kW - Image 3

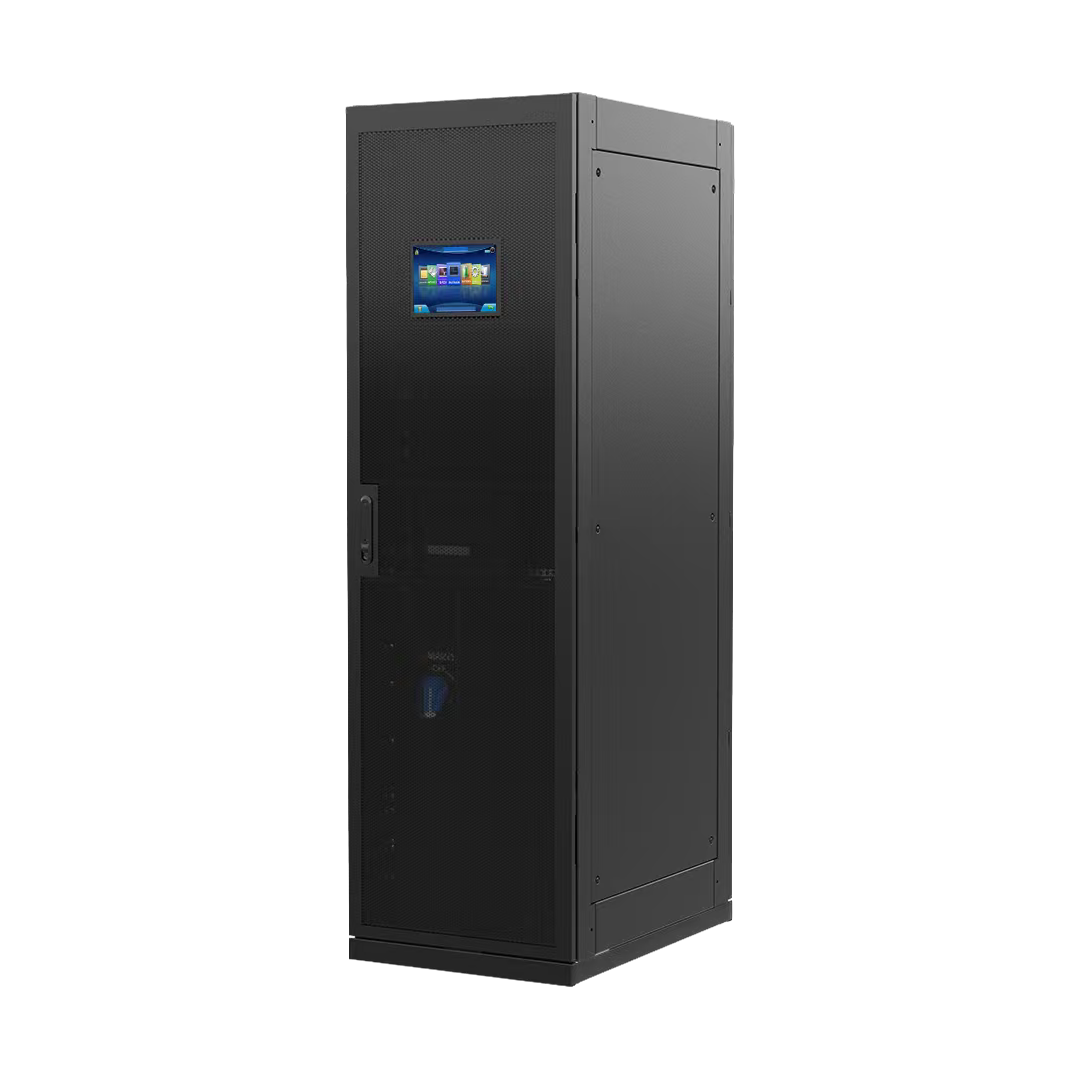

ARIET Abellion M200 50 kW

Three-phase modular UPS is an online solution with pure double conversion, providing stable power quality and protection.

Submit a request
SKU: Abellion M200 50K Categories: , , Series:
Application

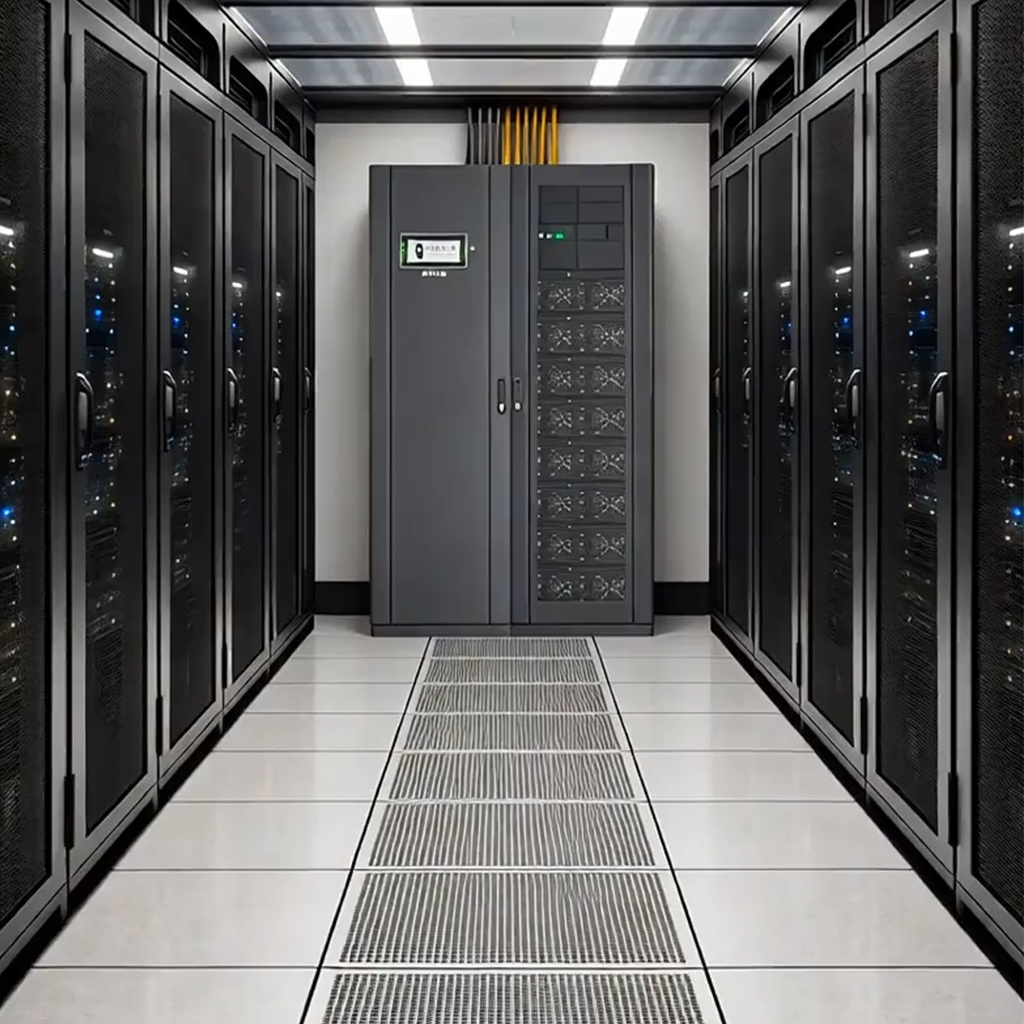

  • Ensuring uninterrupted power supply of servers, systems data storage and network equipment
  • Protection of switches, routers, transmission equipment data
  • Stable power supply critically important financial systems and transactional platforms

Description

Three-phase modular UPS is an online solution with pure double conversion, providing stable power quality and protection. It is characterized by high efficiency and low level of harmonic distortion, and is also equipped with DSP control for reliable operation of the rectifier, inverter and batteries. The device has a wide range of input parameters, an intelligent self-diagnostic system, backup cooling, flexible cable connection options and an integrated fire-resistant dust filter according to UL94 and UL900 standards.

Technical Specifications - Ariet_ABELLION_M_200_50к datasheet_En

Parameter Value
Model M200
Nominal Power 200 kVA
Power Module Capacity 50 kW
Input
Phase 3P5W (3P+N+PE)
Nominal voltage 380/400/415 V AC (L-L); 220/230/240 V AC (L-N)
Voltage range 138–485 VAC
At 40°C: The UPS operates at full load at 323–485 VAC
and operates at reduced power at 323–138 VAC.
At 30°C: The UPS operates at full load at 305–485 VAC
and operates at reduced power at 305–138 VAC
Nominal frequency 50/60 Hz
Input power factor >= 0.99
THDi (Total Harmonic Distortion) <= 3% (full linear load)
Bypass Input
Nominal voltage 380/400/415 V AC (L-L); 220/230/240 V AC (L-N)
Voltage range Range: -40% +25%, configurable, default -20% ~ +15%
Battery
Nominal voltage ± 192 V DC (360-528 V DC, 30-44 pcs, default 32 pcs)
Voltage accuracy ± 1%
Output
Voltage range 380/400/415 V AC (L-L); 220/230/240 V AC (L-N)
Frequency range 50/60 Hz
Power factor 1
Voltage accuracy ± 1.0%
Frequency accuracy 50/60 Hz ± 0.1%
Frequency tracking range Settable, ± 0.5 Hz; ± 5 Hz; ± 3 Hz
THDv (Output) < 1% (linear load), < 4% (non-linear load according to IEC 62040-3)
Crest factor 3:1
Overload 110%, 1 hour; 125%, 10 minutes; 150%, 1 minute; > 150%, 200 ms
Other
System efficiency Normal mode >= 96%; Battery mode >= 96%
Display 10-inch touch LED screen
Protection class IP20
Communication USB, RS232, RS485, dry contact, cold start, air
Options — Interface SNMP card, AS400 card, parallel kit, SPD, LBS
Operating Conditions
Operating temperature 0~40°C (operation); -25°C~70°C (storage)
Humidity 0–95% (non-condensing)
Noise 72 dB at 100% load, 69 dB at 45% load
Certification
EMS Certification IEC 62040-2; IEC 61000-4-2 (ESD); IEC 61000-4-3 (RS); IEC 61000-4-4 (EFT); IEC 61000-4-5 (Surge)
Safety Certification IEC 62040-1, IEC 60950-1
Physical Parameters
Dimensions (WDH) mm 600*850*2000
  1. Data Centers
  2. Medical Facilities
  3. Telecommunications Systems
  4. Industrial Enterprises
  5. Financial Systems
  6. Commercial Objects

Declaration of Conformity of Uninterruptible Power Supplies with the Requirements of the EAEU Technical Regulations

Преимущества
3P/3P online solutions with clean dual transformation support the system 380/400/415 V, 50/60 Hz, providing the perfect quality of power supply.
High performance and efficiency, input power factor >0.99, THDi 96%.
Full DSP control, flexible and reliable digital management rectifier, inverter and battery.
Wide voltage and frequency range, adapts to different differences voltage from the mains or generator.
Intelligent self-diagnostic circuit UPS and rechargeable batteries, large volume memory to store history.

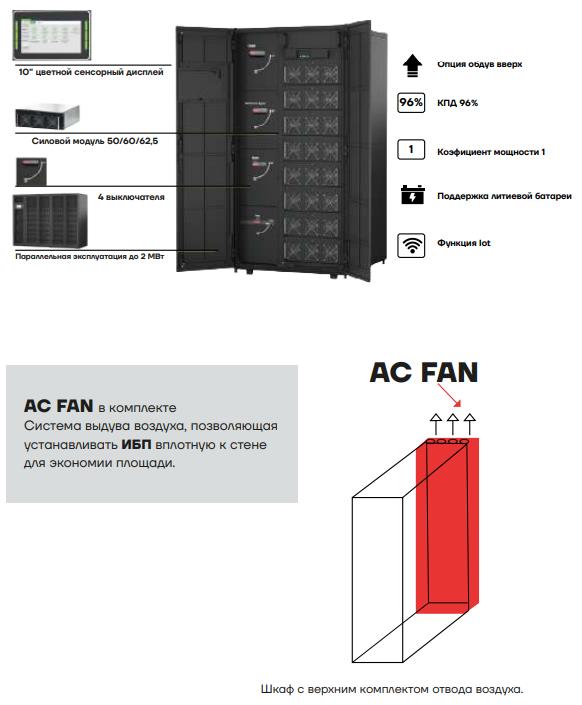

Standby fan design in power module improves reliability and stability of the system.
Flexible connection setup — an upper or lower cable entry is possible.
Built-in cleanable and flame retardant dust filter. compliant with standards UL94 and UL900.
Advantages
3P/3P online solutions with clean dual transformation support the system 380/400/415 V, 50/60 Hz, providing the perfect quality of power supply.
High performance and efficiency, input power factor >0.99, THDi 96%.
Full DSP control, flexible and reliable digital management rectifier, inverter and battery.
Wide voltage and frequency range, adapts to different differences voltage from the mains or generator.
Intelligent self-diagnostic circuit UPS and rechargeable batteries, large volume memory to store history.
Standby fan design in power module improves reliability and stability of the system.
Flexible connection setup — an upper or lower cable entry is possible.
Built-in cleanable and flame retardant dust filter. compliant with standards UL94 and UL900.
