A three-phase, high-frequency UPS with online double-conversion topology designed to protect critical equipment from power outages and instability.
A three-phase, high-frequency UPS with online double-conversion topology designed to protect critical equipment from power outages and instability.
The cold start function allows you to turn on the power supply and power connected equipment solely from the batteries when there is no external 220V power supply. This ensures temporary operation of the equipment during a power outage.
Technical Specifications - ARIKSO HVD3310-20S datasheet_En
| MODEL | HVD3310S | HVD3320S |
| Nominal Power | 10 kVA | 20 kVA |
| Main Input | ||
| Input Connection | 3P5W (3P+N+PE) | 3P5W (3P+N+PE) |
| Nominal Voltage | 380/400/415 VAC (L-L); 220/230/240 VAC (L-N) | 380/400/415 VAC (L-L); 220/230/240 VAC (L-N) |
| Nominal Frequency | 50/60 Hz | 50/60 Hz |
| Input Power Factor | ≥0.99 | ≥0.99 |
| THDi | < 2% (100% linear load) | < 2% (100% linear load) |
| Input Voltage Range | 304–478 VAC (L-L) at full load; 304–228 VAC (L-L) — derating from 100% to 50% | 304–478 VAC (L-L) at full load; 304–228 VAC (L-L) — derating from 100% to 50% |
| Input Frequency Range | 40–70 Hz | 40–70 Hz |
| Battery | ||
| Nominal Voltage | ±240 V | ±240 V |

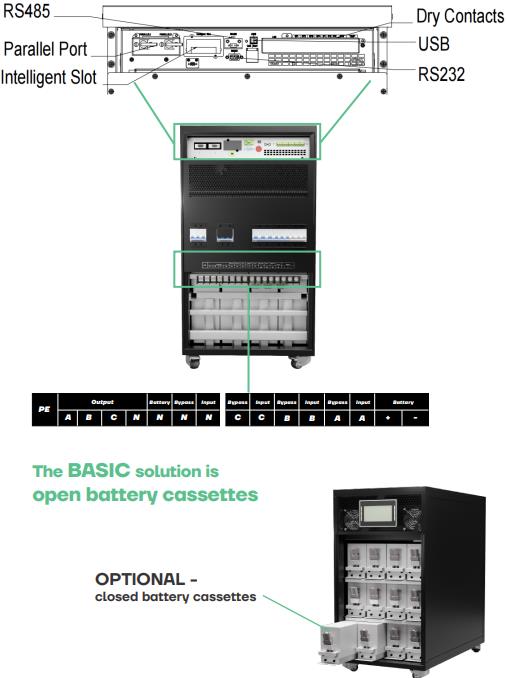

| Type | 12 V / 7–9 Ah Base solution - open battery cassettes (optional - closed battery cassettes) | 12 V / 7–9 Ah Base solution - open battery cassettes (optional - closed battery cassettes) |
| Quantity | Internal batteries: 80 pcs, 12 cassettes | Internal batteries: 80 pcs, 12 cassettes |
| Charging Capacity | 17.2% x Pout | 8.6% x Pout |
| Charging Accuracy | ±1% | ±1% |
| Bypass | ||
| Nominal Voltage | 380/400/415 VAC (L-L); 220/230/240 VAC (L-N) | 380/400/415 VAC (L-L); 220/230/240 VAC (L-N) |
| Voltage Range | -40% ~ +25%, settable, default -20% ~ +15% | -40% ~ +25%, settable, default -20% ~ +15% |
| Frequency Range | 50/60 Hz, settable: ±1 Hz, ±3 Hz, ±5 Hz | 50/60 Hz, settable: ±1 Hz, ±3 Hz, ±5 Hz |
| Inverter | ||
| Nominal Voltage | 380/400/415 VAC (L-L); 220/230/240 VAC (L-N) | 380/400/415 VAC (L-L); 220/230/240 VAC (L-N) |
| Nominal Frequency | 50/60 Hz | 50/60 Hz |
| Output Power Factor | 1 | 1 |
| Voltage Accuracy | ±1.0% | ±1.0% |
| THDu | <1% (linear load); <5% (non-linear load) | <1% (linear load); <5% (non-linear load) |
| Overload | 110% — 1 hour; 125% — 10 min; 150% — 1 min; >150% — 200 ms | 110% — 1 hour; 125% — 10 min; 150% — 1 min; >150% — 200 ms |
| Frequency Accuracy | 0.1% | 0.1% |
| Sync Window | settable ±0.5 Hz ~ ±5 Hz; default ±3 Hz | settable ±0.5 Hz ~ ±5 Hz; default ±3 Hz |
| Frequency Slew Rate | settable 0.5 Hz/s ~ 3 Hz/s; default 0.5 Hz/s | settable 0.5 Hz/s ~ 3 Hz/s; default 0.5 Hz/s |
| Crest Factor | 3:1 | 3:1 |
| Phase Accuracy | 120° ±0.5° | 120° ±0.5° |
| System | ||
| Efficiency | up to 97% | up to 97% |
| Display | LED + 7" touch LCD | LED + 7" touch LCD |
| Safety Certification | IEC62040-1, IEC60950-1 | IEC62040-1, IEC60950-1 |
| EMC Certification | IEC62040-2; IEC61000-4-2 (ESD); IEC61000-4-3 (RS); IEC61000-4-4 (EFT); IEC61000-4-5 (Surge) | IEC62040-2; IEC61000-4-2 (ESD); IEC61000-4-3 (RS); IEC61000-4-4 (EFT); IEC61000-4-5 (Surge) |
| Interfaces | USB, RS232, RS485, dry contact, air filter, cold start | USB, RS232, RS485, dry contact, air filter, cold start |
| Options | SNMP card, AS400 card, parallel kit | SNMP card, AS400 card, parallel kit |
| Operating Conditions | ||
| Operating Temperature | 0–40°C (operating); -25°C ~ +70°C (storage); 0–95% (humidity, non-condensing) | 0–40°C (operating); -25°C ~ +70°C (storage); 0–95% (humidity, non-condensing) |
| Physical Parameters | ||
| Dimensions (WDH) mm | 500*864*922 | 500*864*922 |
| Weight (kg) | 68 | 68 |
