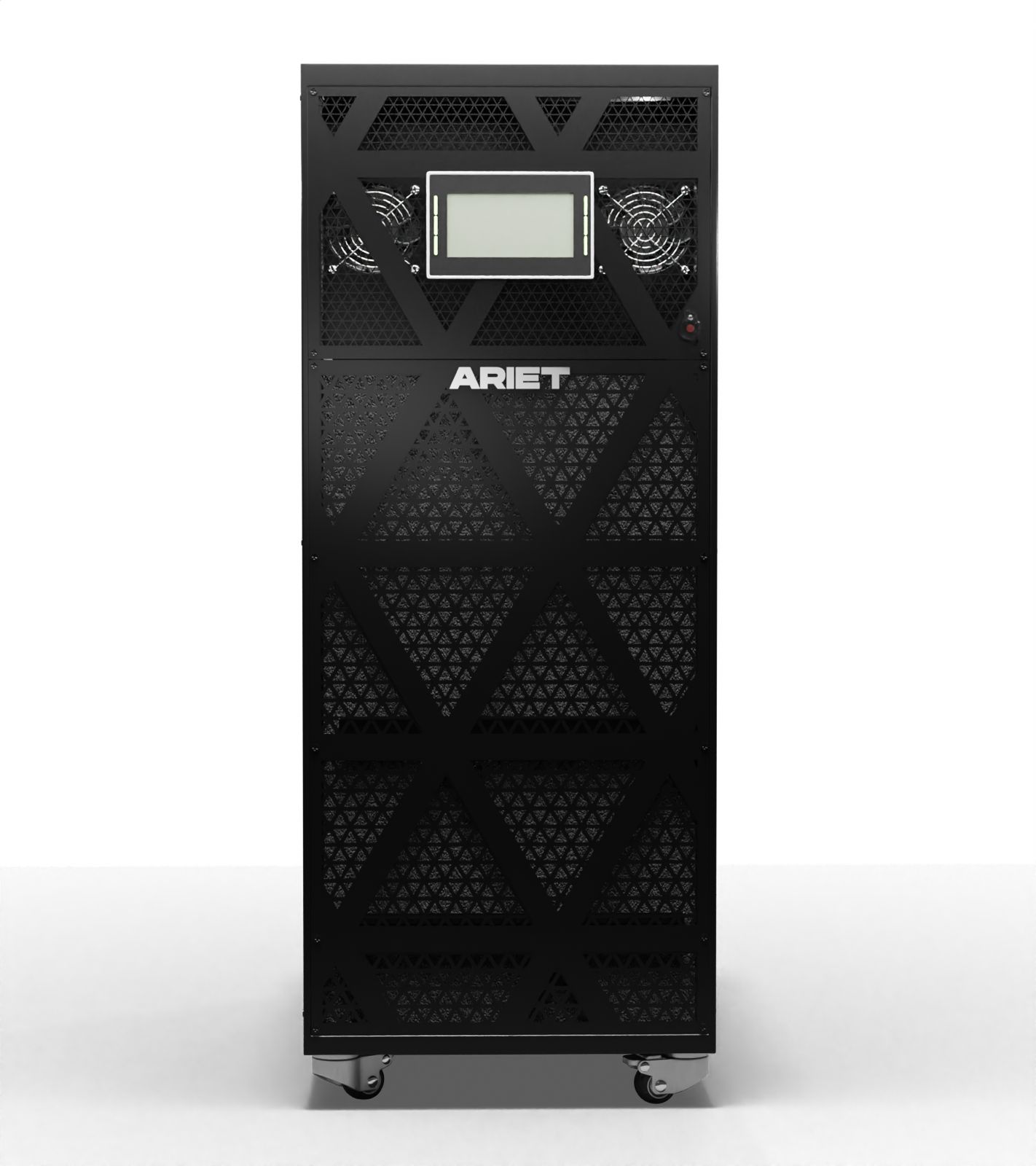

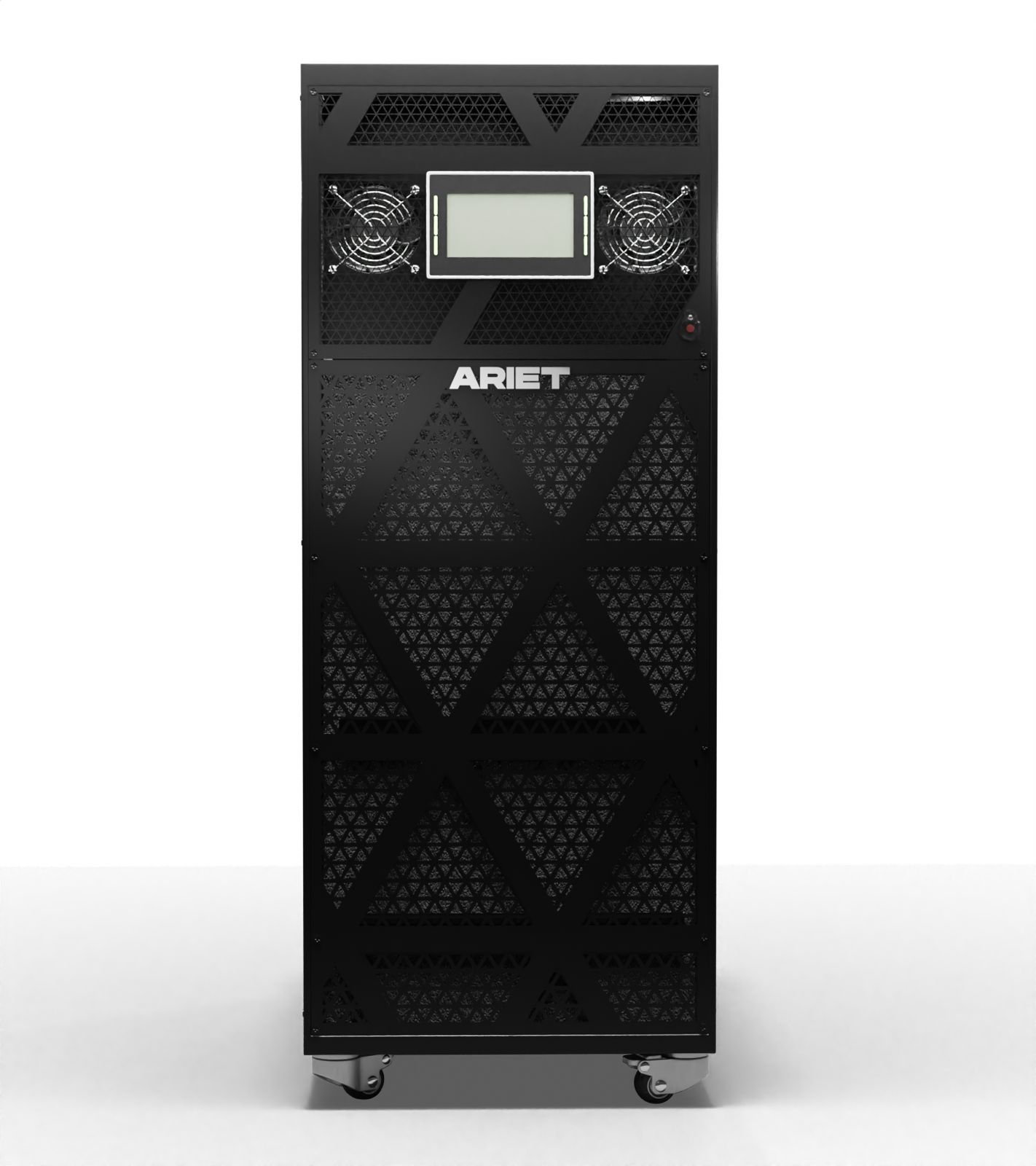

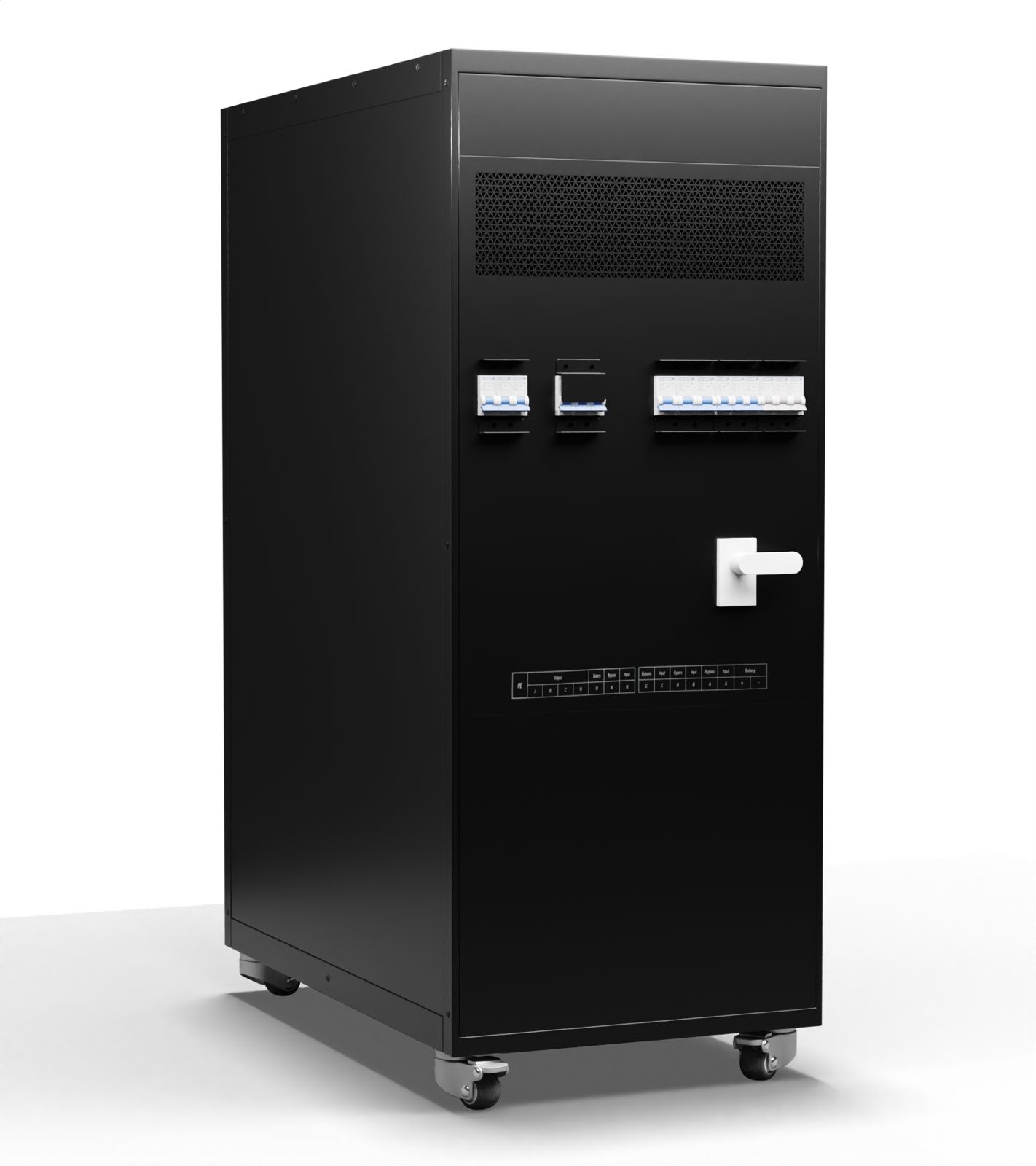

A three-phase, high-frequency UPS with online double-conversion topology designed to protect critical equipment from power outages and instability.
A three-phase, high-frequency UPS with online double-conversion topology designed to protect critical equipment from power outages and instability.
The cold start function allows you to turn on the power supply and power connected equipment solely from the batteries when there is no external 220V power supply. This ensures temporary operation of the equipment during a power outage.
Technical Specifications - ARIKSO_HVD3360S_datasheet_En.pdf
| MODEL | HVD3360S |
| Nominal capacity | 60 kVA |
| Main Input | |
| Input connection | 3P5W (3P+N+PE) |
| Nominal voltage | 380/400/415 V (L-L); 220/230/240 V (L-N) |
| Nominal frequency | 50/60 Hz |
| Input power factor | ≥0.99 |
| Current distortion THDi | < 2% (100% linear load) |
| Input voltage range | 304–478 V (L-L) at full load; 304–228 V (L-L) — derating from 100% to 50% |
| Input frequency range | 40–70 Hz |
| Battery | |
| Nominal voltage | ±240 V |
| Type | 12 V / 7–9 Ah Base solution - open battery cassettes, (optional - closed battery cassettes) |

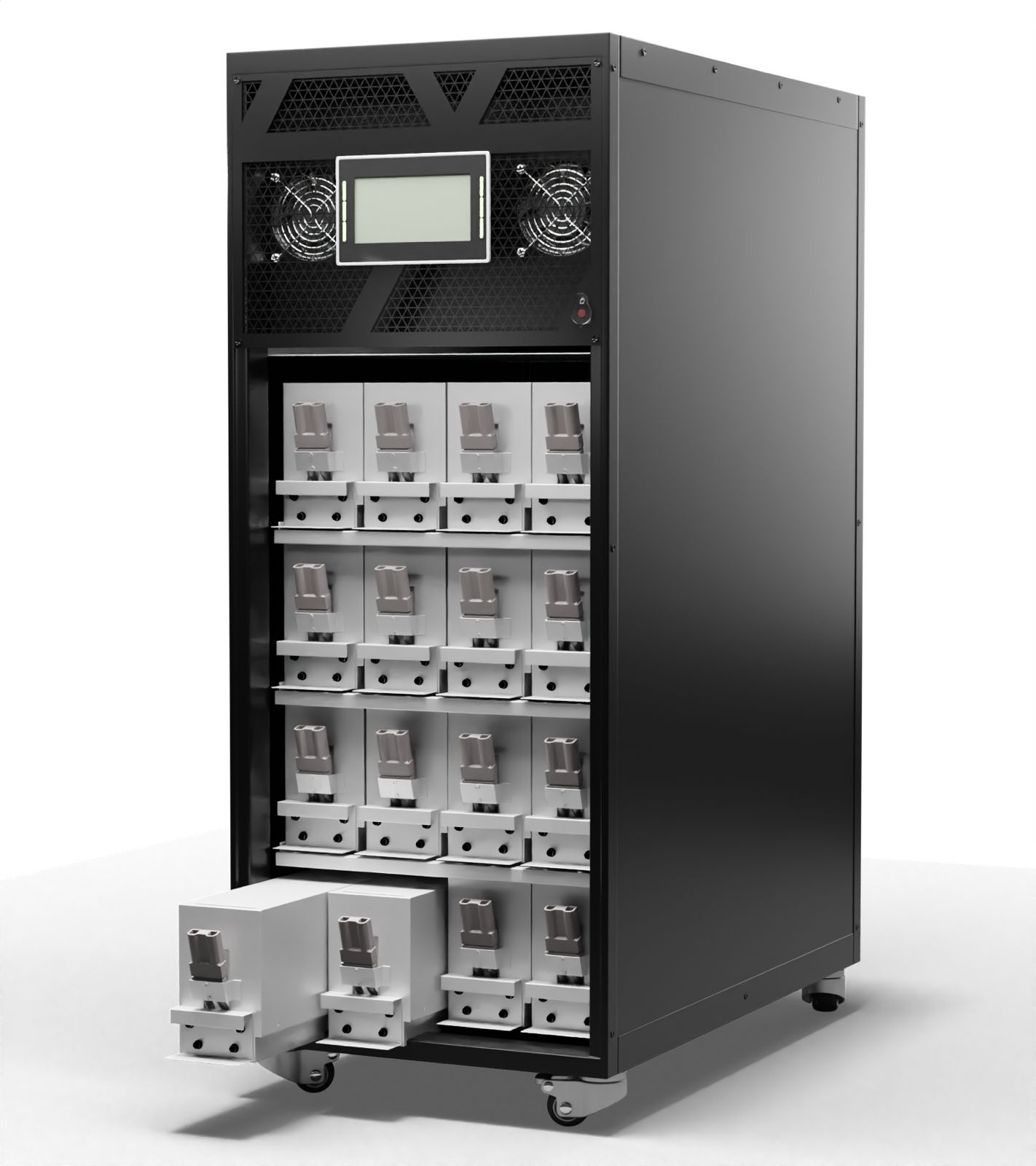

| Quantity | Internal batteries: 160 pcs, 16 cassettes |
| Charging power | 20% x Pout |
| Charging accuracy | ±1% |
| Bypass | |
| Nominal voltage | 380/400/415 V (L-L); 220/230/240 V (L-N) |
| Voltage range | -40% ~ +25%, configurable, default -20% ~ +15% |
| Frequency range | 50/60 Hz, configurable: ±1 Hz, ±3 Hz, ±5 Hz |
| Inverter | |
| Nominal voltage | 380/400/415 V (L-L); 220/230/240 V (L-N) |
| Nominal frequency | 50/60 Hz |
| Output power factor | 1 |
| Voltage accuracy | ±1.0% |
| Output voltage distortion THDu | <1% (linear load); <5% (non-linear load) |
| Overload | 110% — 1 hour; 125% — 10 min; 150% — 1 min; >150% — 200 ms |
| Frequency accuracy | 0.10% |
| Synchronization window | configurable ±0.5 Hz ~ ±5 Hz; default ±3 Hz |
| Slew rate | configurable 0.5 Hz/s ~ 3 Hz/s; default 0.5 Hz/s |
| Crest factor | 3:1 |
| Phase accuracy | 120° ±0.5° |
| System | |
| Efficiency | Max. 96% |
| Display | LED + 7" touch LCD |
| Certification — safety | IEC62040-1, IEC60950-1 |
| Certification — EMC | IEC62040-2; IEC61000-4-2 (ESD); IEC61000-4-3 (RS); IEC61000-4-4 (EFT); IEC61000-4-5 (Surge) |

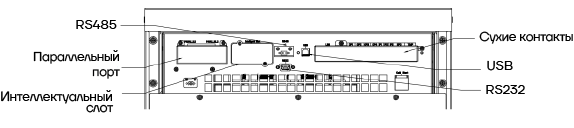

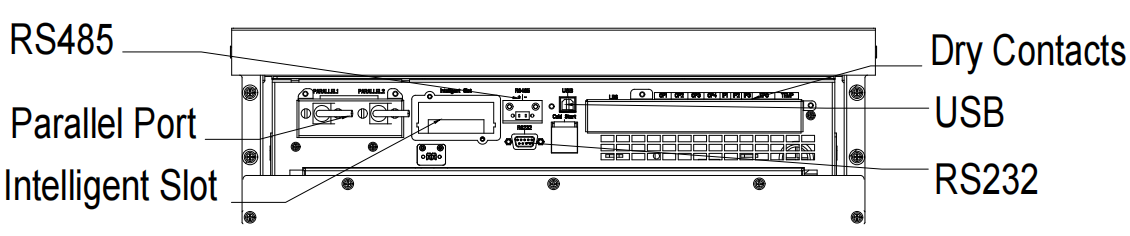

| Interfaces | USB, RS232, RS485, dry contact, air filter, cold start |
| Options | SNMP card, AS400 card, parallel kit |
| Operating Conditions | |
| Operating temperature | 0–40°C (operation); -25°C ~ +70°C (storage); 0–95% (humidity, non-condensing) |
| Physical Parameters | |
| Dimensions (WDH) mm | 501*865*1251 |
| Weight (kg) | 400 |
