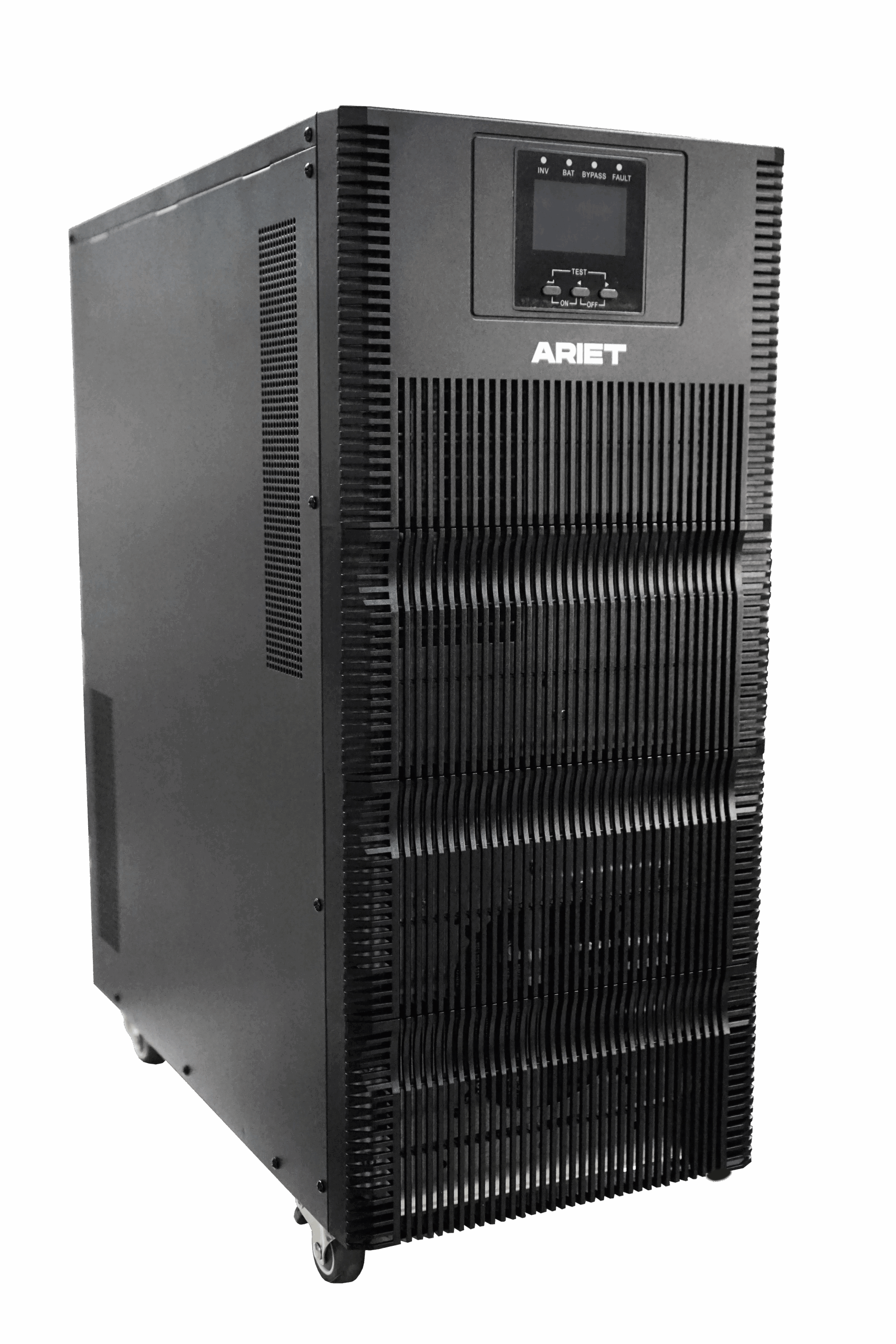

ARIET T10Ks

High-frequency online UPS – reliable power protection solution. Designed to ensure continuous operation even in the face of power outages and voltage fluctuations.

Submit a request
SKU: T10Ks Categories: , ,
Application
  • Security systems and monitoring
  • Computer equipment
  • Networking solutions and telecommunications
  • Airports & logistics hubs
  • hospitals and diagnostic centers
  • Processing centers, payment systems

Description

High-frequency online UPS – reliable power protection solution. Designed to ensure continuous operation even in the face of power outages and voltage fluctuations. Modern UPSs should not only guarantee reliable backup power, but also increase energy efficiency, reduce maintenance costs and integrate with intelligent monitoring systems. High-frequency online UPSs best meet these requirements, applying advanced technologies to operate in conditions of high sensitivity to the quality of power supply.

Technical Specifications - ARIET T10Ks_datasheet_En

Parameter Value
Model T10Ks
Power 10 kVA
Input
Nominal voltage 208/220/230/240 V AC, L+N+PE
Voltage range 110–300 V AC
Frequency range 50/60 +/- 6 Hz
Power factor >= 0.99
THDi (Total Harmonic Distortion of current) <= 5% (linear load); <= 8% (non-linear load)
Output
Nominal voltage 208/220/230/240 V AC, L+N+PE
Voltage accuracy +/- 1%
Frequency 50/60 Hz +/- 0.1%
THDu (Total Harmonic Distortion of voltage) <= 2% (linear load); <= 5% (non-linear load)
Transfer time Zero
Waveform Pure sine wave
Crest factor 3:1
Overload capacity (Linear mode) Load 102%–105%, 30 min; load 105%–125%, 10 min; Load 125–150%, 30 s; load >150%, 500 ms
Overload capacity (Battery mode) Load 102%–105%, 10 min; load 105%–125%, 1 min; Load 125–150%, 10 s; load >150%, 500 ms
Efficiency
Linear mode 95%
Battery mode 94.50%
ECO mode 98%
Battery
Nominal voltage 192 V DC / 240 V DC
Battery quantity 9Ah * 20 pcs.
Charge current 1–12A
Interface RS232 / USB / SNMP card (optional) / AS400 card (optional) / RS485 card (optional)
Operating Conditions
Operating temperature 0~40°C
Humidity 0–95% (non-condensing)
Noise level <= 50 dB at 1 meter distance
Installation height < 1000 m without power derating
Physical Parameters
Dimensions (WDH) mm 250 * 523 * 602
Weight (kg) 62
  1. Office and Server Equipment
  2. Medical facilities and laboratories
  3. Telecommunications Systems

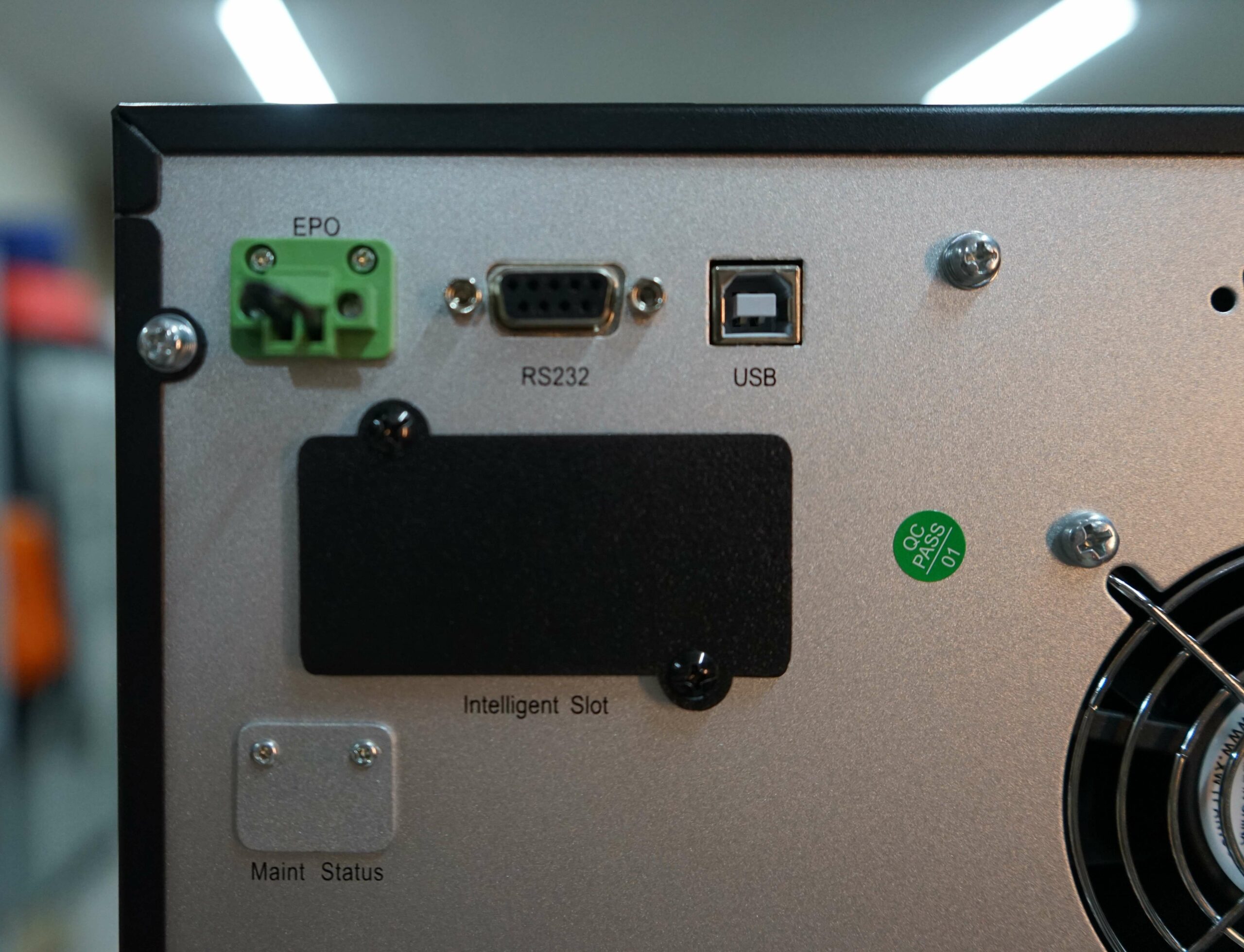

① RS232
② Smart slot
③ Fan
④ USB
⑤ Input circuit breaker
⑥ Service switch (optional)
⑦ Terminal block
⑧ Output circuit breaker (optional)
⑨ Emergency power disconnect connector
⑩ Service status
⑪ Battery circuit breaker (optional)
⑫ Parallel ports (optional)



Declaration of Conformity of Uninterruptible Power Supplies with the Requirements of the EAEU Technical Regulations

Преимущества
Wide input voltage range — the device can operate in the range of the input voltage from 110 V to 300 V, which provides highly adaptable to different conditions power supply.
Online double conversion technology — ensures that your equipment will be receive a stable output voltage in the in the form of a pure sinusoidal wave , without interference in the power grid.
High efficiency — Thanks to efficiency aC conversion up to 95% in mode of operation from the mains and 94.5% in the operating mode from the battery, energy loss is minimized and operating costs are reduced.
Intelligent Battery Management — digital charging system allows adjust the charging current from 1 to 12 A, ensuring optimal condition and timing battery services. connection to the mains.
Robust construction — designed to operate in harsh environments, with operating temperature range of 0-40°C and permissible humidity up to 95% (without condensation). Compact design and low noise level (≤50 dB) make it suitable both for data centers and for of industrial enterprises.
Enhanced monitoring and control — intelligent RS232/USB port and optional SNMP/RS485/AS400 cards, offers the possibility of intellectual monitoring and remote control. This is allows system administrators monitor the status of the UPS, receive alerts and effectively manage power consumption.
Advantages
Wide input voltage range — the device can operate in the range of the input voltage from 110 V to 300 V, which provides highly adaptable to different conditions power supply.
Online double conversion technology — ensures that your equipment will be receive a stable output voltage in the in the form of a pure sinusoidal wave , without interference in the power grid.
High efficiency — Thanks to efficiency aC conversion up to 95% in mode of operation from the mains and 94.5% in the operating mode from the battery, energy loss is minimized and operating costs are reduced.
Intelligent Battery Management — digital charging system allows adjust the charging current from 1 to 12 A, ensuring optimal condition and timing battery services. connection to the mains.
Robust construction — designed to operate in harsh environments, with operating temperature range of 0-40°C and permissible humidity up to 95% (without condensation). Compact design and low noise level (≤50 dB) make it suitable both for data centers and for of industrial enterprises.
Enhanced monitoring and control — intelligent RS232/USB port and optional SNMP/RS485/AS400 cards, offers the possibility of intellectual monitoring and remote control. This is allows system administrators monitor the status of the UPS, receive alerts and effectively manage power consumption.
