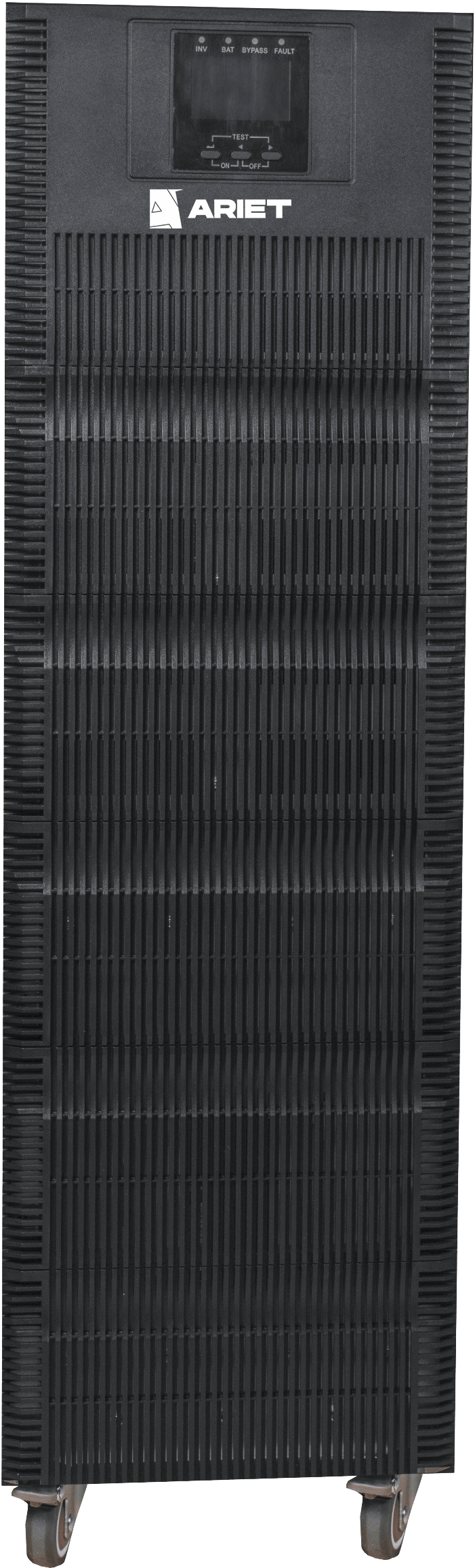

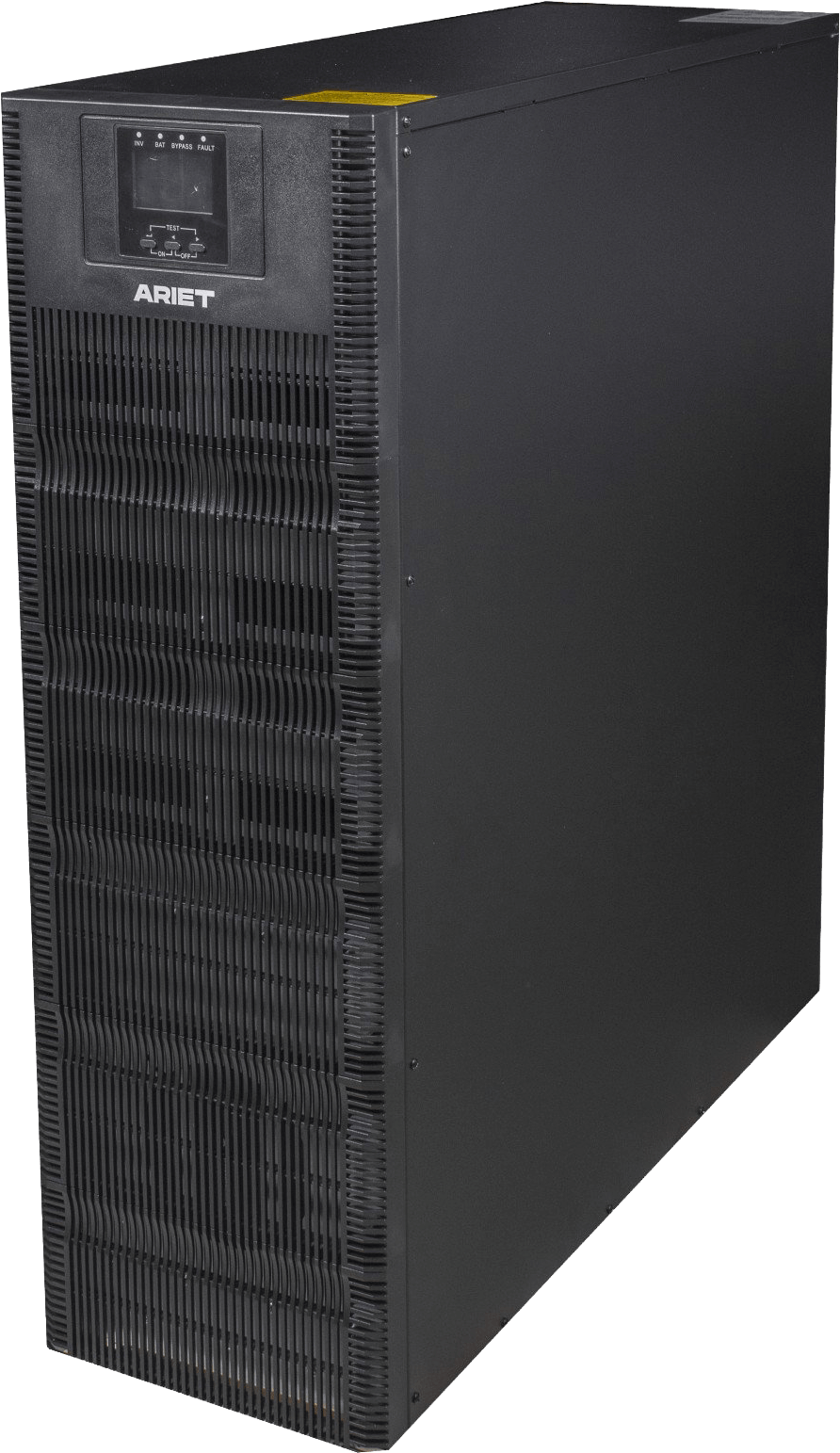

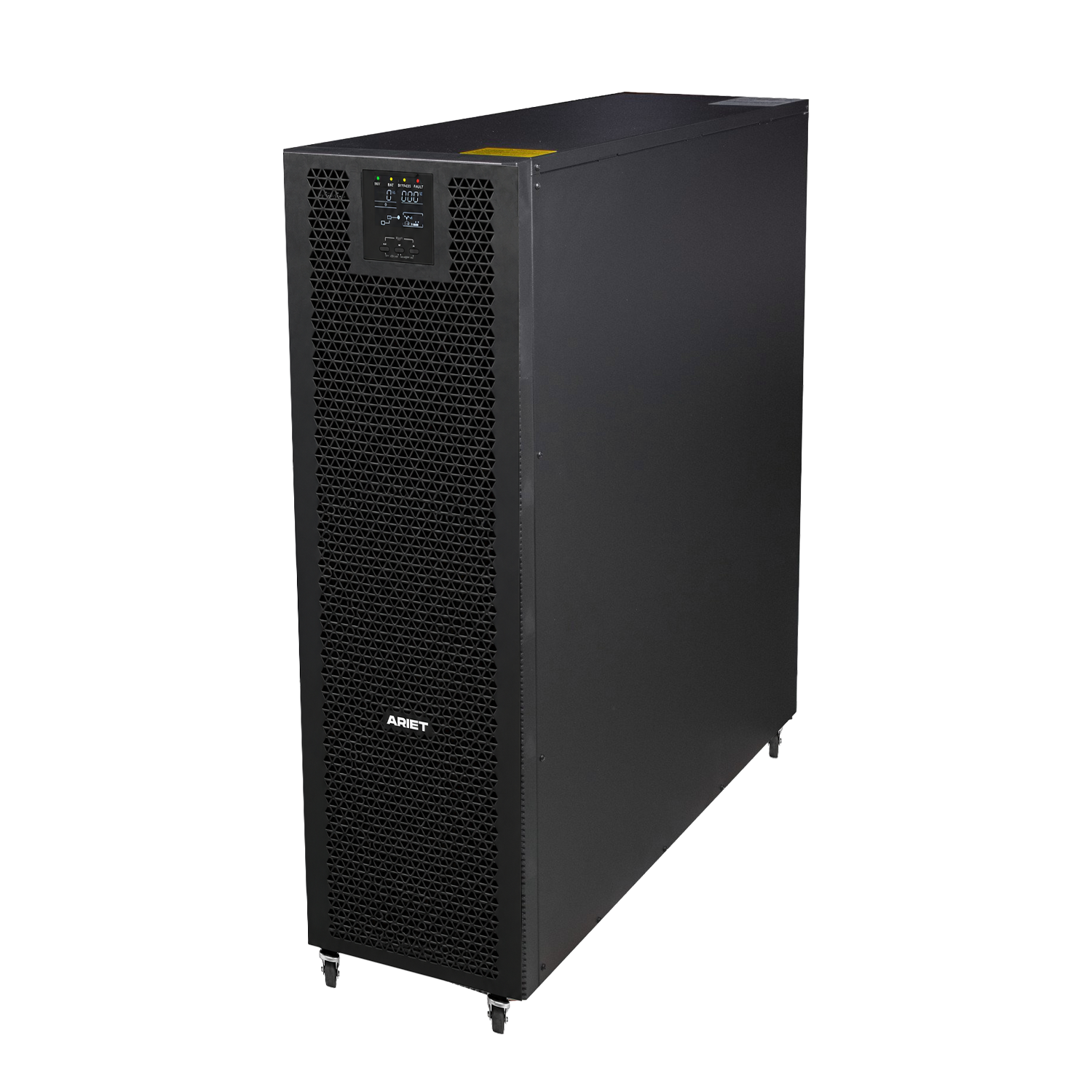

ARIET T15K

High-frequency online UPS – reliable power protection solution. Designed to ensure continuous operation even in the face of power outages and voltage fluctuations.

Submit a request
SKU: T15K Categories: , ,
Application

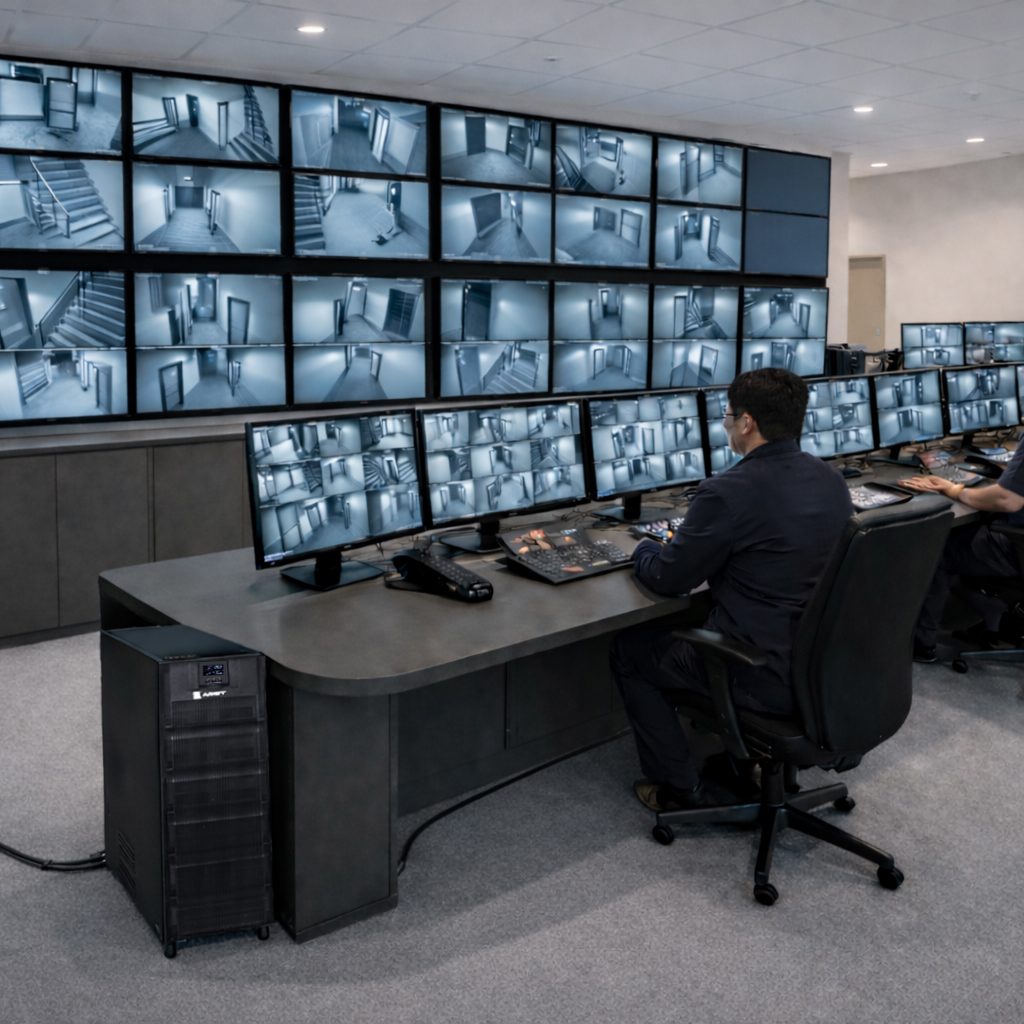

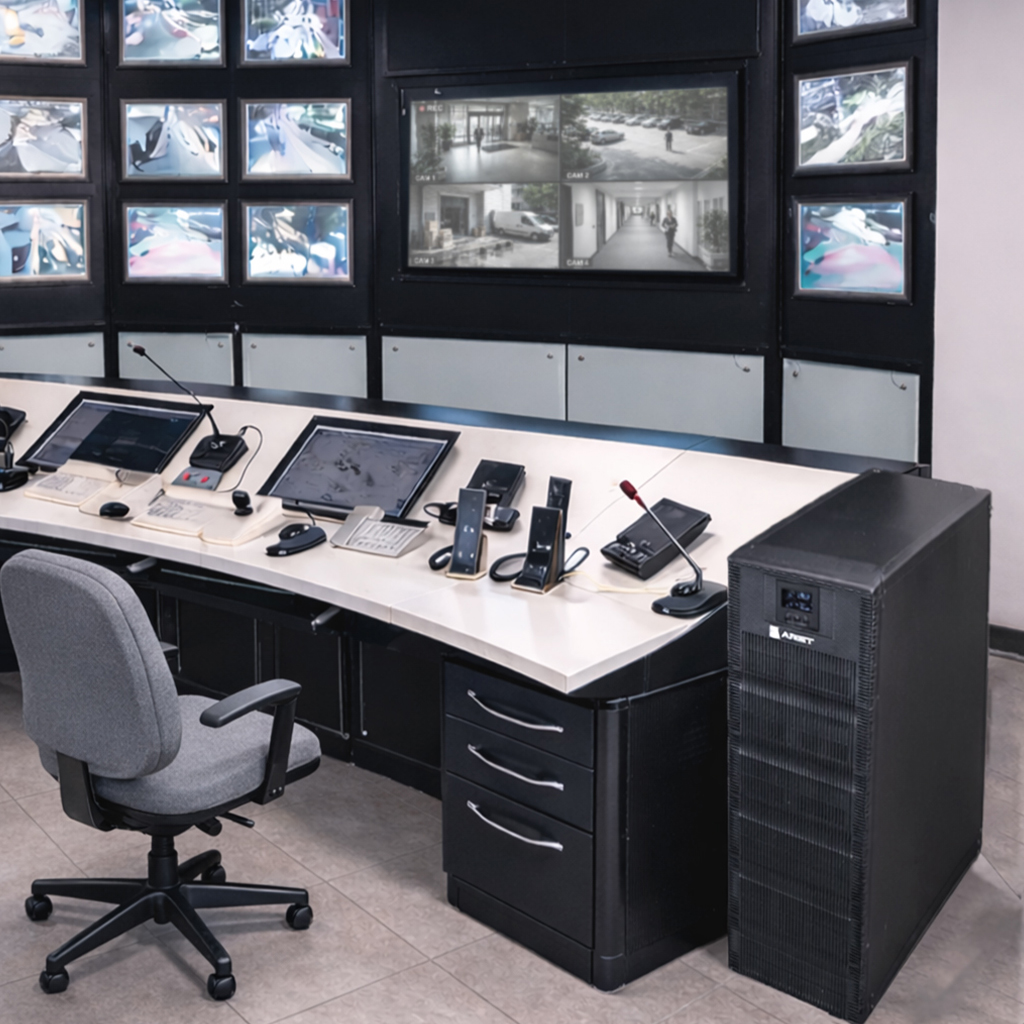

  • Security systems and monitoring
  • Computer equipment
  • Networking solutions and telecommunications
  • Airports & logistics hubs
  • Hospitals and diagnostic centers
  • Processing centers, payment systems

Description

High-frequency online UPS – reliable power protection solution. Designed to ensure continuous operation even in the face of power outages and voltage fluctuations. Modern UPSs should not only guarantee reliable backup power, but also increase energy efficiency, reduce maintenance costs and integrate with intelligent monitoring systems. High-frequency online UPSs best meet these requirements, applying advanced technologies to operate in conditions of high sensitivity to the quality of power supply.

Technical Specifications - ARIET T15K datasheet_En

Parameter Value
Model T15K
Power 15 kVA / 15 kW
Input
Nominal voltage 208/220/230/240 V AC, L+N+PE
Voltage range 95–300 V AC
Frequency range 40–70 Hz
Power factor >= 0.99
Output
Nominal voltage 208/220/230/240 V AC, L+N+PE
Voltage accuracy +/- 1%
Frequency 50/60 Hz +/- 0.1%
THDu (Voltage distortion) <= 2% (linear load); <= 7% (non-linear load)
Transfer time Zero
Waveform Pure sine wave
Crest factor 3:1
Overload (Linear mode) 105%~125%: 10 min; 126%~150%: 1 min; >150%: 100 ms
Overload (Battery mode) 105%~125%: 1 s; >126%: 100 ms
Efficiency
Linear mode 93%
Battery mode 92%
ECO mode 98%
Battery
Nominal voltage 192 V DC / 240 V DC
Battery quantity 9Ah * 40 pcs.
Charge current 4–8 A
Interface RS232 / USB / SNMP card (opt.) / AS400 (opt.) / RS485 (opt.)
Operating Conditions
Operating temperature 0~40°C
Humidity 0–95% (non-condensing)
Noise level <= 50 dB at 1 meter distance
Installation height < 1000 m without power derating
Physical Parameters
Dimensions (WDH) mm 250 * 752 * 857
Weight (kg) 139
  1. Office and Server Equipment
  2. Medical facilities and laboratories
  3. Telecommunications Systems

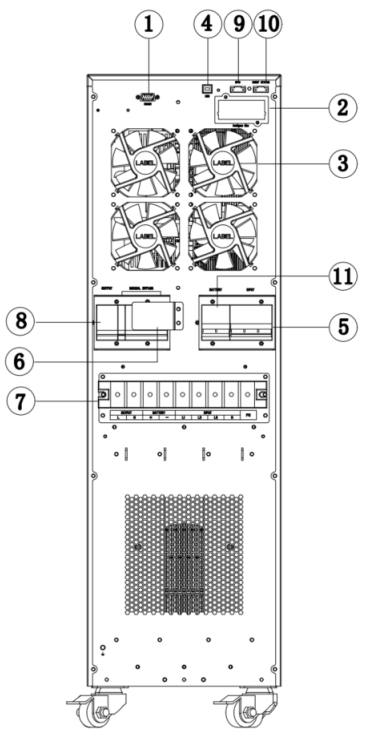

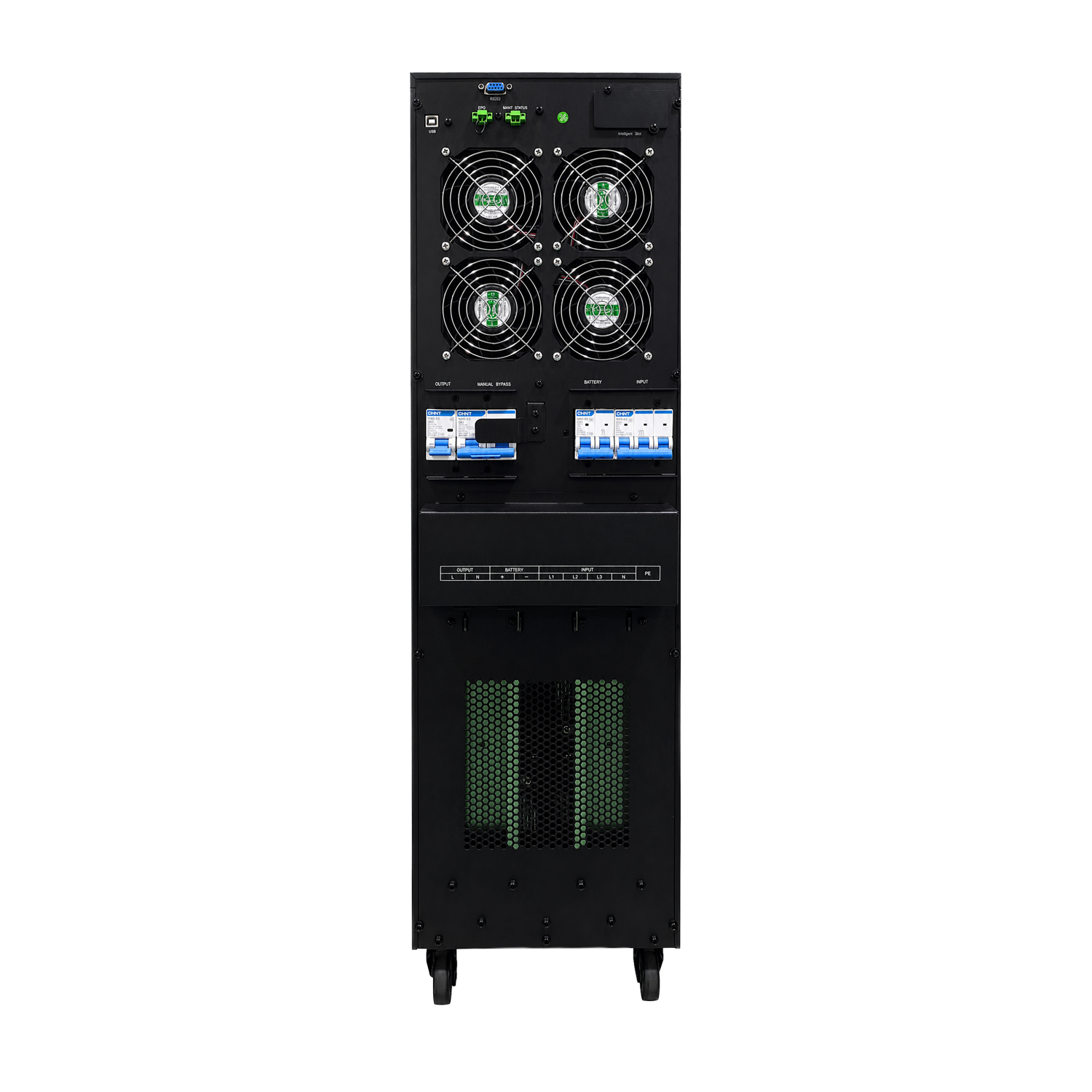

① RS232
② Smart slot
③ Fan
④ USB
⑤ Input circuit breaker
⑥ Maintenance circuit breaker (optional)
⑦ Terminal block
⑧ Output circuit breaker (optional)
⑨ EPO (emergency power off)
⑩ Maintenance status port
⑪ Battery circuit breaker (optional)

Declaration of Conformity of Uninterruptible Power Supplies with the Requirements of the EAEU Technical Regulations

Преимущества
Wide input voltage range — operation within the input voltage range 95 V to 300 V, useful for enterprises, located in areas with unstable power grids and voltage fluctuations.
Online double conversion technology provides a stable power supply with zero switching time, excluding interruptions and guaranteeing trouble-free operation critically important systems.
High efficiency — in linear mode it reaches 93% efficiency, and in the mode battery life — 92%. ECO mode further boosts energy saving, optimizing the operation of the UPS.
Intelligent monitoring and communication — built-in Smart RS232/USB port and cards SNMP/RS485/AS400 (optional) allow connect the UPS to your network and track it real-time operation.
Flexible configuration and long time battery life allows you to adjust the time backup power, selecting the number of batteries and connection of an external battery cabinet for increasing the capacity without changing the dimensions.
Power Factor Correction Technology (PFC) provides a power factor of input greater than 99%, minimizing harmonic distortion and improving the overall quality electricity.
Robust design capable of withstanding the harsh conditions of the industrial environment make it suitable for various locations, including centers data processing, server rooms and manufacturing enterprises.
User-friendly interface — automatic speed control fan, emergency shutdown function power supply (EPO) and compatibility with generators, further enhance convenience.
Advantages
Wide input voltage range — operation within the input voltage range 95 V to 300 V, useful for enterprises, located in areas with unstable power grids and voltage fluctuations.
Online double conversion technology provides a stable power supply with zero switching time, excluding interruptions and guaranteeing trouble-free operation critically important systems.
High efficiency — in linear mode it reaches 93% efficiency, and in the mode battery life — 92%. ECO mode further boosts energy saving, optimizing the operation of the UPS.
Intelligent monitoring and communication — built-in Smart RS232/USB port and cards SNMP/RS485/AS400 (optional) allow connect the UPS to your network and track it real-time operation.
Flexible configuration and long time battery life allows you to adjust the time backup power, selecting the number of batteries and connection of an external battery cabinet for increasing the capacity without changing the dimensions.
Power Factor Correction Technology (PFC) provides a power factor of input greater than 99%, minimizing harmonic distortion and improving the overall quality electricity.
Robust design capable of withstanding the harsh conditions of the industrial environment make it suitable for various locations, including centers data processing, server rooms and manufacturing enterprises.
User-friendly interface — automatic speed control fan, emergency shutdown function power supply (EPO) and compatibility with generators, further enhance convenience.
