ARIET T2KRS

T1-3KRS Series UPS is a state-of-the-art power protection solution designed to ensure the reliable and stable operation of your critical electrical systems.

Submit a request
SKU: T2KRS Categories: , , Series:
Application
  • Protection of workstations and servers from power outages.
  • Power supply for critical systems: laboratory and diagnostic equipment
  • Protection of switches, routers, data transmission equipment

Description

T1-3KRS Series UPS is a state-of-the-art power protection solution designed to ensure the reliable and stable operation of your critical electrical systems. Thanks to the online double conversion technology and a wide range of input voltages, the UPS of this series provides high performance and flexibility in operation. This makes them the optimal solution for a variety of tasks — from protecting equipment in small offices to providing uninterrupted power to large data centers. Whether it is office equipment, data center infrastructure or other critical systems, this UPS will become a reliable assistant, guaranteeing a continuous and stable power supply.

Technical Specifications - ARIET T1-3KRS datasheet_En

Parameter T1KRS T2KRS T3KRS
Model T1KRS T2KRS T3KRS
Capacity 1 kVA / 1 kW 2 kVA / 2 kW 3 kVA / 3 kW
Input
Nominal voltage 208/220/230/240 V AC, L+N+PE 208/220/230/240 V AC, L+N+PE 208/220/230/240 V AC, L+N+PE
Voltage range 110–300 V AC 110–300 V AC 110–300 V AC
Frequency range 50/60 +/- 6 Hz 50/60 +/- 6 Hz 50/60 +/- 6 Hz
Power factor >= 0.99 >= 0.99 >= 0.99
THDi (Total Harmonic Distortion of current) <= 4% (linear load); <= 5% (non-linear load) <= 4% (linear load); <= 5% (non-linear load) <= 4% (linear load); <= 5% (non-linear load)
Output
Nominal voltage 208/220/230/240 V AC, L+N+PE 208/220/230/240 V AC, L+N+PE 208/220/230/240 V AC, L+N+PE
Voltage accuracy +/- 1% +/- 1% +/- 1%
Frequency 50/60 Hz +/- 0.1% 50/60 Hz +/- 0.1% 50/60 Hz +/- 0.1%
THDu (Total Harmonic Distortion of voltage) <= 2% (linear load); <= 5% (non-linear load) <= 2% (linear load); <= 5% (non-linear load) <= 2% (linear load); <= 5% (non-linear load)
Transfer time Zero Zero Zero
Waveform Pure sine wave Pure sine wave Pure sine wave
Crest factor 3:1 3:1 3:1
Overload capacity (Linear mode) 102%–110%, 30 min; 110%–130%, 10 min; 130%–150%, 30 s; >150%, 200 ms 102%–110%, 30 min; 110%–130%, 10 min; 130%–150%, 30 s; >150%, 200 ms 102%–110%, 30 min; 110%–130%, 10 min; 130%–150%, 30 s; >150%, 200 ms
Overload capacity (Battery mode) 102%–110%, 1 min; 110%–130%, 10 s; 130%–150%, 3 s; >150%, 200 ms 102%–110%, 1 min; 110%–130%, 10 s; 130%–150%, 3 s; >150%, 200 ms 102%–110%, 1 min; 110%–130%, 10 s; 130%–150%, 3 s; >150%, 200 ms
Efficiency
Linear mode 94.50% 95.50% 95.50%
Battery mode 88.50% 91.50% 91.50%
ECO mode 98% 98% 98%
Battery
Nominal voltage 36 V DC 72 V DC 96 V DC
Battery quantity 7Ah * 3 pcs. 9Ah * 4 pcs. 9Ah * 6 pcs.
Charge current 1A (1-12A) 1A (1-12A) 1A (1-12A)
Interface RS232 / USB / SNMP card (optional) / AS400 card (optional) / RS485 card (optional) RS232 / USB / SNMP card (optional) / AS400 card (optional) / RS485 card (optional) RS232 / USB / SNMP card (optional) / AS400 card (optional) / RS485 card (optional)
Operating Conditions
Operating temperature 0–40°C 0–40°C 0–40°C
Humidity 0–95% (non-condensing) 0–95% (non-condensing) 0–95% (non-condensing)
Noise level <= 50 dB at 1 meter distance <= 50 dB at 1 meter distance <= 50 dB at 1 meter distance
Installation height < 1000 m without power derating < 1000 m without power derating < 1000 m without power derating
Physical Parameters
Dimensions (WDH) mm 440*369*86 440*450*86 440*564*86
Weight (kg) 13 22,5 27,8
  1. Office and Server Equipment
  2. Medical facilities and laboratories
  3. Telecommunications Systems

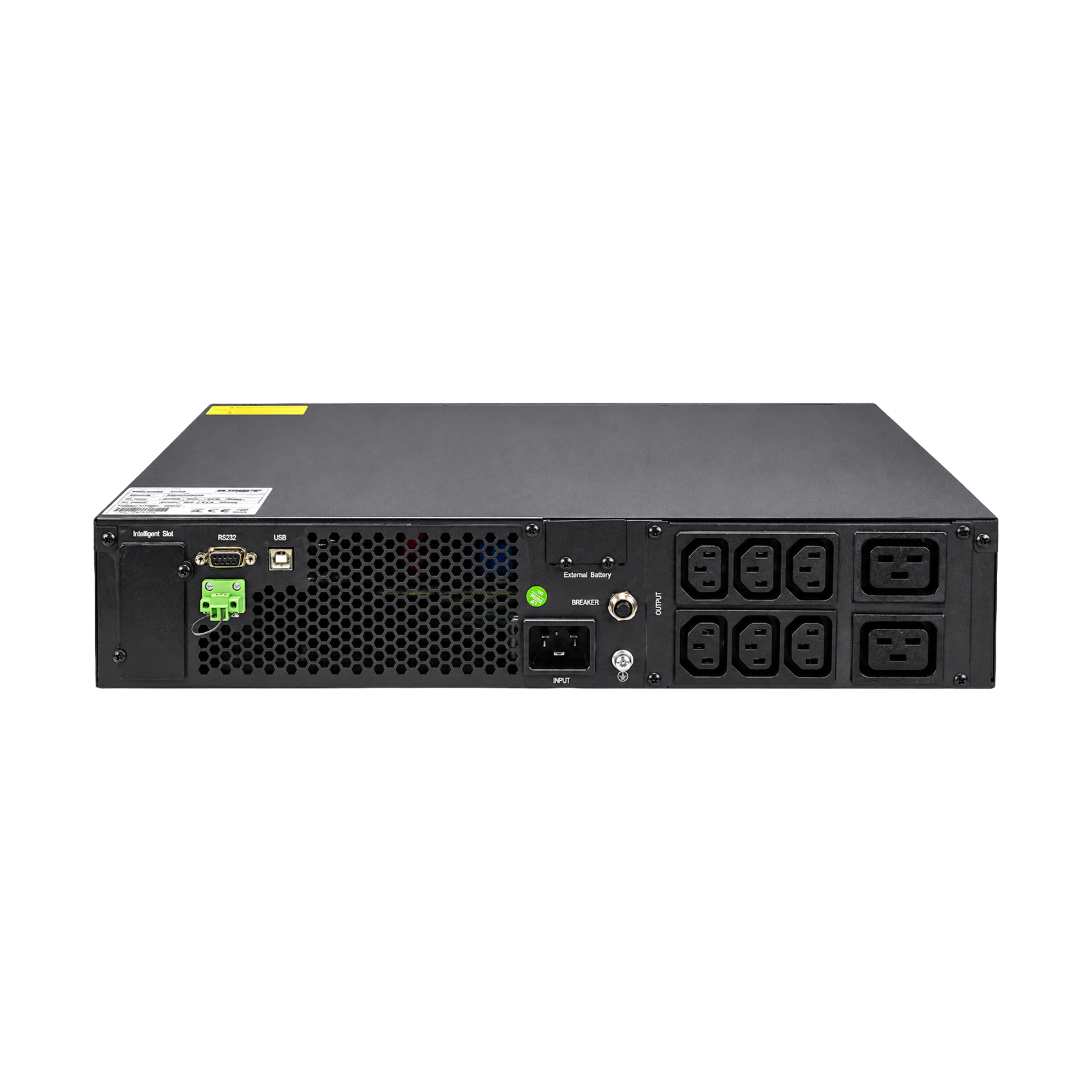

① RS232
② Smart slot
③ External battery port
④ USB
⑤ Automatic input overcurrent protection switch
⑥ AC input
⑦ Output connector
⑧ EPO (Emergency Power Off)

Declaration of Conformity of Uninterruptible Power Supplies with the Requirements of the EAEU Technical Regulations

Преимущества
Generator compatibility and battery cold start — these features make the UPS easily adaptable to different power supplies and operating scenarios.
High efficiency — thanks to AC conversion efficiency up to 95%, the UPS not only saves energy, but also reduces operating costs, making it a cost-effective solution.
ECO mode — further increases energy efficiency, reaching up to 98% efficiency while maintaining reliable protection against interruptions in the power supply.
Hot-swappable battery makes it easy to replace the battery without power interruptions, minimizing downtime and ensuring continuous work.
Modular design and expandable battery capacity allow easy to scale and upgrade system as the business grows.
Power Factor Correction Technology (PFC) provides a power factor of input of more than 99%, which guarantees a high power quality and compatibility with different electrical systems.
Intelligent RS232/USB port with monitoring software allows for easy remote monitoring and control of the UPS, ensuring the tracking of its real-time status.
True online dual technology conversion ensures that connected devices will always get clean and stable power supply, protecting them from jumps and voltage fluctuations.
Advantages
Generator compatibility and battery cold start — these features make the UPS easily adaptable to different power supplies and operating scenarios.
High efficiency — thanks to AC conversion efficiency up to 95%, the UPS not only saves energy, but also reduces operating costs, making it a cost-effective solution.
ECO mode — further increases energy efficiency, reaching up to 98% efficiency while maintaining reliable protection against interruptions in the power supply.
Hot-swappable battery makes it easy to replace the battery without power interruptions, minimizing downtime and ensuring continuous work.
Modular design and expandable battery capacity allow easy to scale and upgrade system as the business grows.
Power Factor Correction Technology (PFC) provides a power factor of input of more than 99%, which guarantees a high power quality and compatibility with different electrical systems.
Intelligent RS232/USB port with monitoring software allows for easy remote monitoring and control of the UPS, ensuring the tracking of its real-time status.
True online dual technology conversion ensures that connected devices will always get clean and stable power supply, protecting them from jumps and voltage fluctuations.
