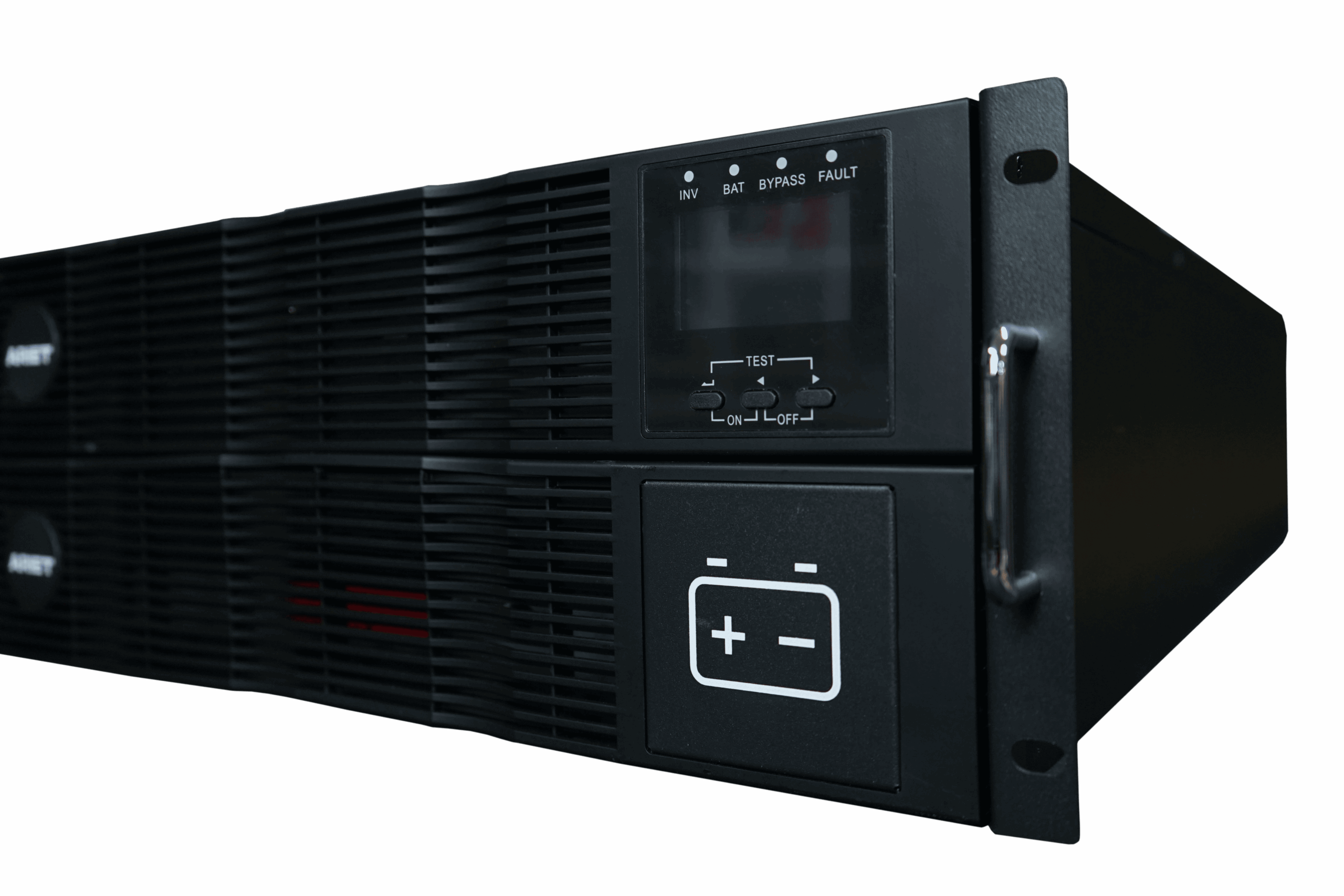

ARIET T6KRS

T6-10KRS Series UPS designed to ensure stable operation thanks to an advanced battery management system.

Submit a request
SKU: T6KRS Categories: , , Series:
Application
  • IT Infrastructure and office equipment
  • Hospitals and diagnostic centers
  • Mobile operators and Internet Service Providers
  • Protection of workstations and servers from power outages.
  • Power for critical systems: laboratory and diagnostic equipment
  • Protection of switches, routers, data transmission equipment

Description

T6-10KRS Series UPS designed to ensure stable operation thanks to an advanced battery management system. With a nominal voltage of 240 V DC, the UPS is equipped with high-capacity batteries, which ensures a long operating time during a power outage. The digital charging circuit allows you to adjust the charging current from 1 A to 12 A, optimizing battery life and charging efficiency. In addition, the cold start function of the battery allows the UPS to start and maintain the load even without being connected to the mains, providing critical backup power in emergency situations.

Technical Specifications - ARIET T6-10KRS datasheet_En

Parameter T6KRS T10KRS
Model T6KRS T10KRS
Capacity 6 kVA / 6 kW 10 kVA / 10 kW
Input
Nominal voltage 208/220/230/240 V AC, L+N+PE 208/220/230/240 V AC, L+N+PE
Voltage range 110–300 V AC 110–300 V AC
Frequency range 50/60 +/- 6 Hz 50/60 +/- 6 Hz
Power factor >= 0.99 >= 0.99
THDi (Total Harmonic Distortion of current) <= 5% (linear load); <= 8% (non-linear load) <= 5% (linear load); <= 8% (non-linear load)
Output
Nominal voltage 208/220/230/240 V AC, L+N+PE 208/220/230/240 V AC, L+N+PE
Voltage accuracy +/- 1% +/- 1%
Frequency 50/60 Hz +/- 0.1% 50/60 Hz +/- 0.1%
THDu (Total Harmonic Distortion of voltage) <= 2% (linear load); <= 5% (non-linear load) <= 2% (linear load); <= 5% (non-linear load)
Transfer time Zero Zero
Waveform Pure sine wave Pure sine wave
Crest factor 3:1 3:1
Overload capacity (Linear mode) 102%–105%, 30 min; 105%–125%, 10 min; 125%–150%, 30 s; >150%, 500 ms 102%–105%, 30 min; 105%–125%, 10 min; 125%–150%, 30 s; >150%, 500 ms
Overload capacity (Battery mode) 102%–105%, 10 min; 105%–125%, 1 min; 125%–150%, 10 s; >150%, 500 ms 102%–105%, 10 min; 105%–125%, 1 min; 125%–150%, 10 s; >150%, 500 ms
Efficiency
Linear mode 95% 95%
Battery mode 94.50% 94.50%
ECO mode 98% 98%
Battery
Nominal voltage 240 V DC 240 V DC
Battery quantity 9Ah * 16 pcs. (optional 9Ah * 20 pcs.) 9Ah * 16 pcs. (optional 9Ah * 20 pcs.)
Charge current 1A (1-12A) 1A (1-12A)
Interface RS232 / USB / SNMP card (optional) / AS400 card (optional) / RS485 card (optional) RS232 / USB / SNMP card (optional) / AS400 card (optional) / RS485 card (optional)
Operating Conditions
Operating temperature 0–40°C 0–40°C
Humidity 0–95% (non-condensing) 0–95% (non-condensing)
Noise level <= 50 dB at 1 meter distance <= 50 dB at 1 meter distance
Installation height < 1000 m without power derating < 1000 m without power derating
Physical Parameters
Dimensions (WDH) mm 440*711*173 440*711*173
Weight (kg) 70 74
  1. Office and Server Equipment
  2. Medical facilities and laboratories
  3. Telecommunications Systems

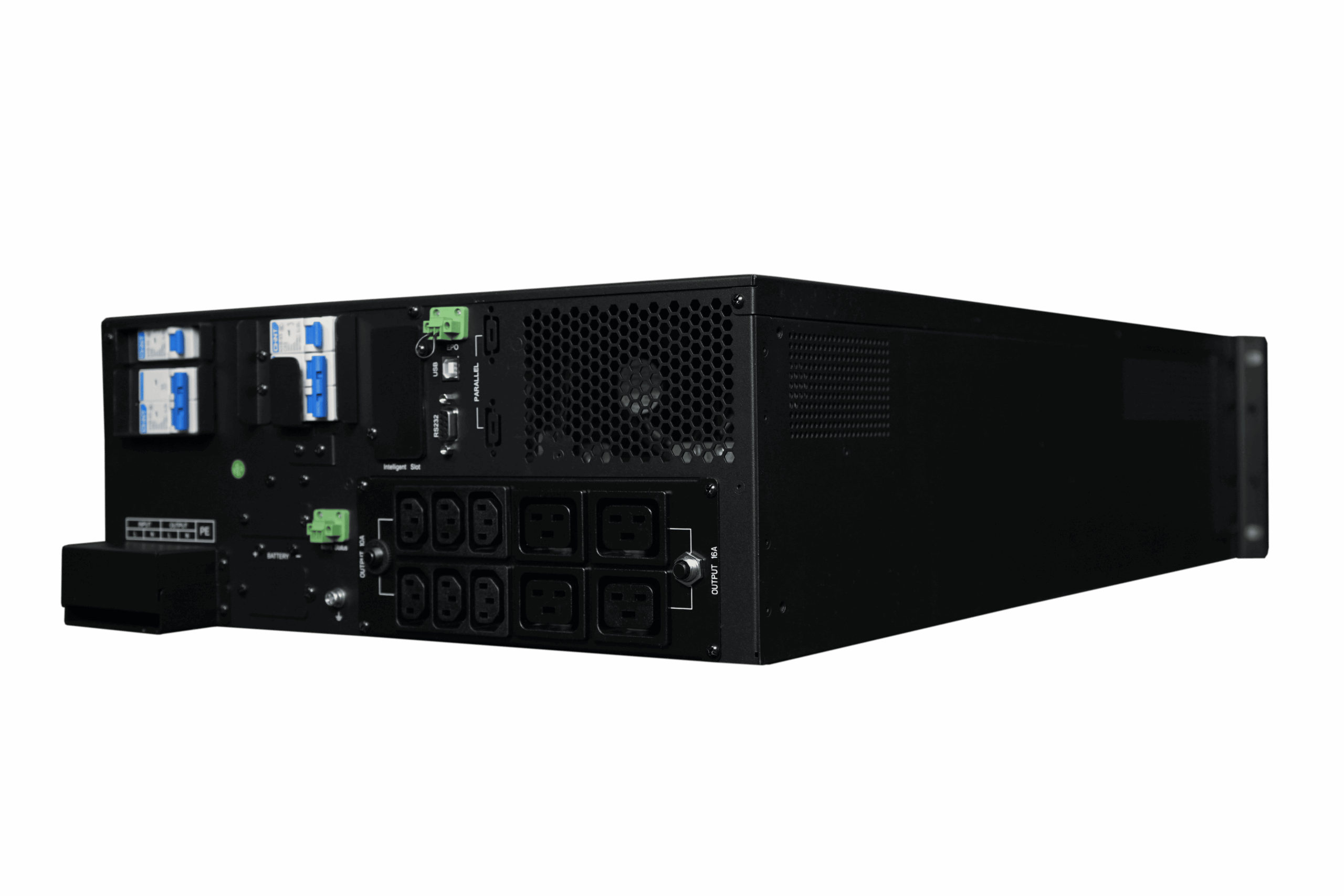

① RS232
② Smart Slot
③ USB
④ Input Switch
⑤ Automatic Switch
for maintenance
⑥ Terminal Block
⑦ Output Switch
⑧ EPO (Emergency Power Off)
⑨ Parallel port
⑩ Battery switch
⑪ External battery connection port
⑫ Output connector
⑬ Automatic output
overcurrent protection switch
⑭ Maintenance status

Declaration of Conformity of Uninterruptible Power Supplies with the Requirements of the EAEU Technical Regulations

Преимущества
The UPS adapts to different areas applications — from small offices to large industrial facilities — thanks to the flexible architecture and a wide range of input voltage.
High output power factor 1 (kVA/kW) allows for efficient power a wide range of loads without loss rated power and overspending network resources.
Compatibility with generators and resistance to unstable power grids make UPS a reliable solution for regions with poor quality of power supply.
Increased security is provided by the emergency function ePO shutdown and automatic protection against output overcurrent.
Modular design and expandable capacity batteries make it easy to scale and upgrade the system as the business grows.
Integration with modern systems monitoring and professional technical support guarantees high reliability and uninterrupted operation of the UPS in the long term perspective.
Advantages
The UPS adapts to different areas applications — from small offices to large industrial facilities — thanks to the flexible architecture and a wide range of input voltage.
High output power factor 1 (kVA/kW) allows for efficient power a wide range of loads without loss rated power and overspending network resources.
Compatibility with generators and resistance to unstable power grids make UPS a reliable solution for regions with poor quality of power supply.
Increased security is provided by the emergency function ePO shutdown and automatic protection against output overcurrent.
Modular design and expandable capacity batteries make it easy to scale and upgrade the system as the business grows.
Integration with modern systems monitoring and professional technical support guarantees high reliability and uninterrupted operation of the UPS in the long term perspective.
