AR50-M
AR50-M - Image 2
AR50-M - Image 3
AR50-M - Image 4
AR50-M - Image 5

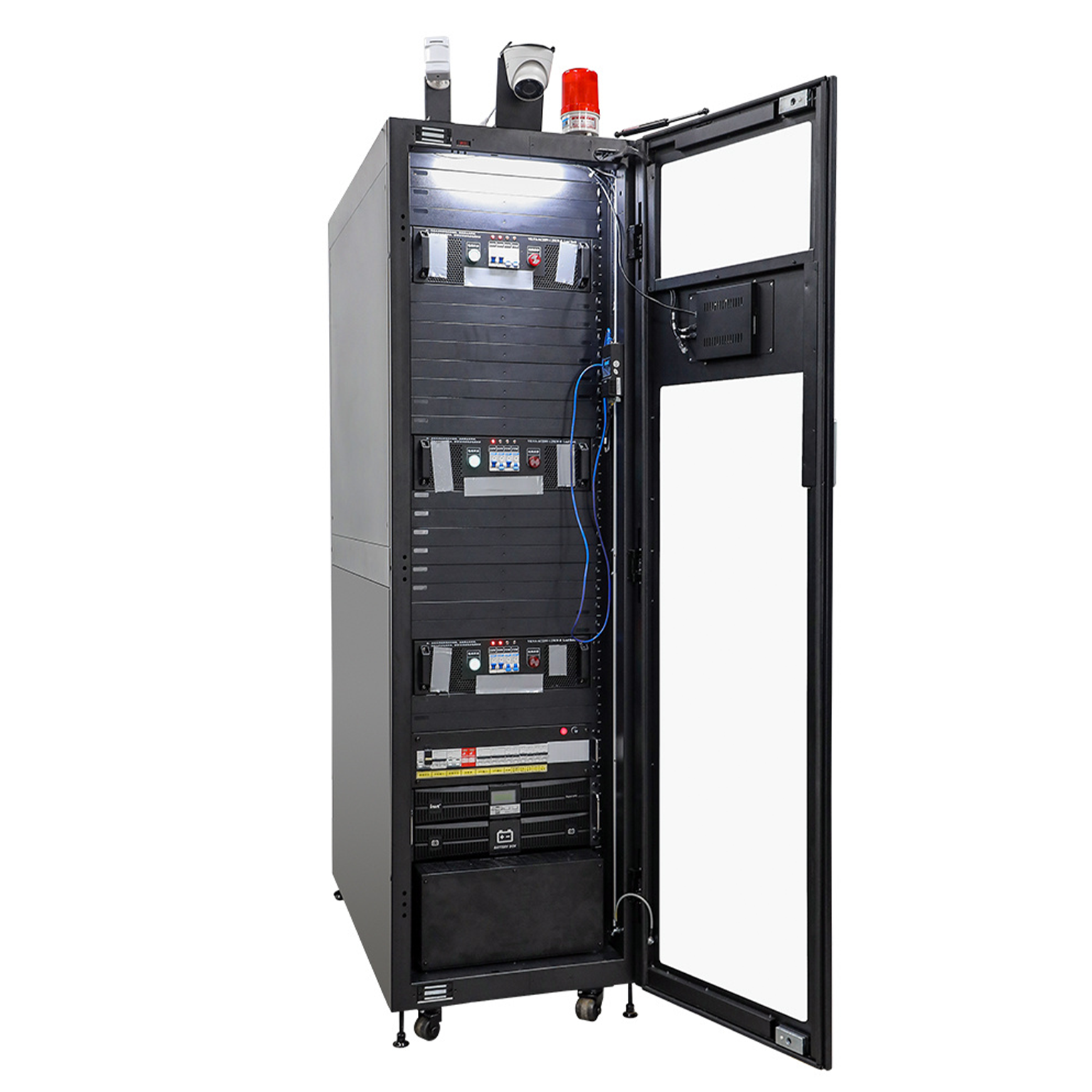

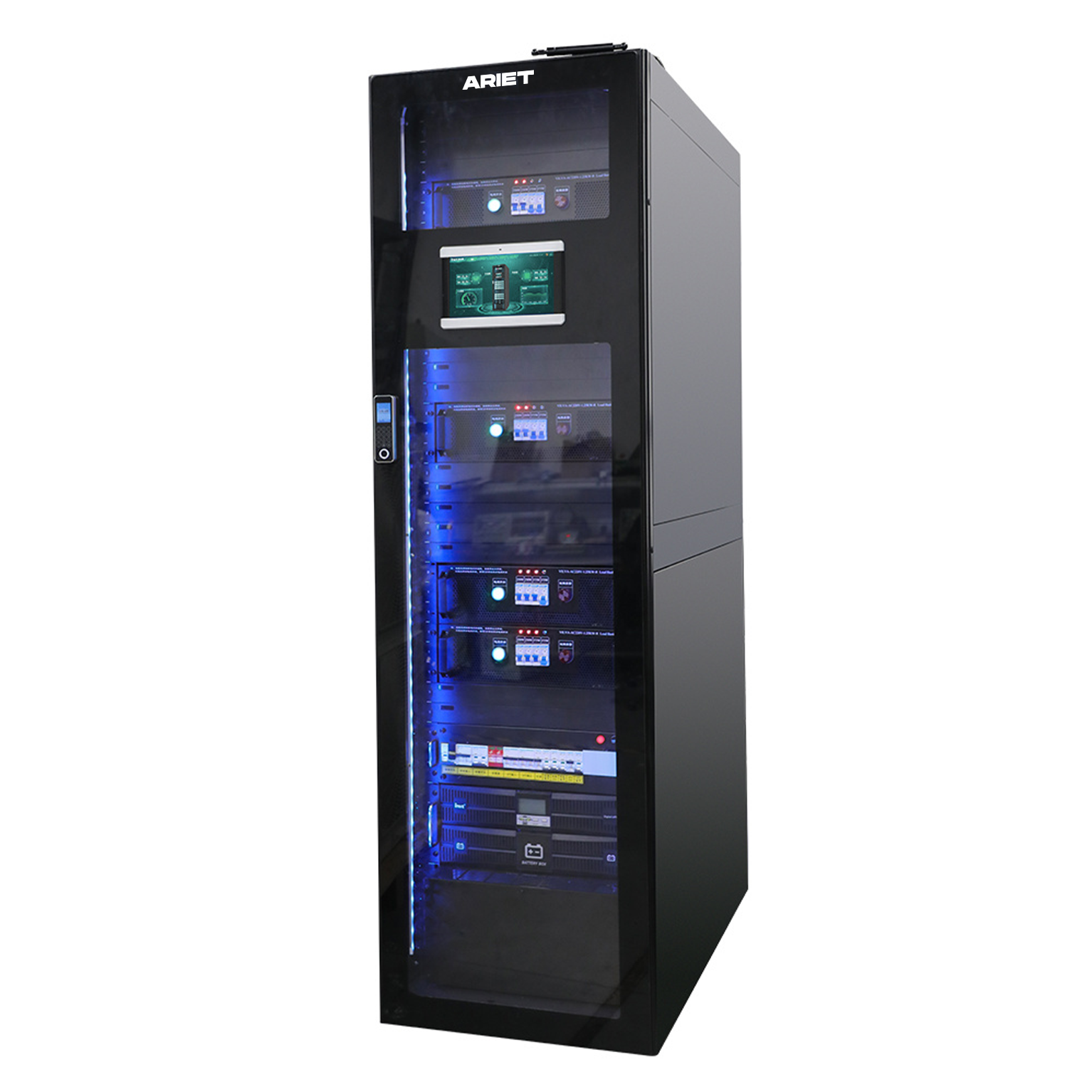

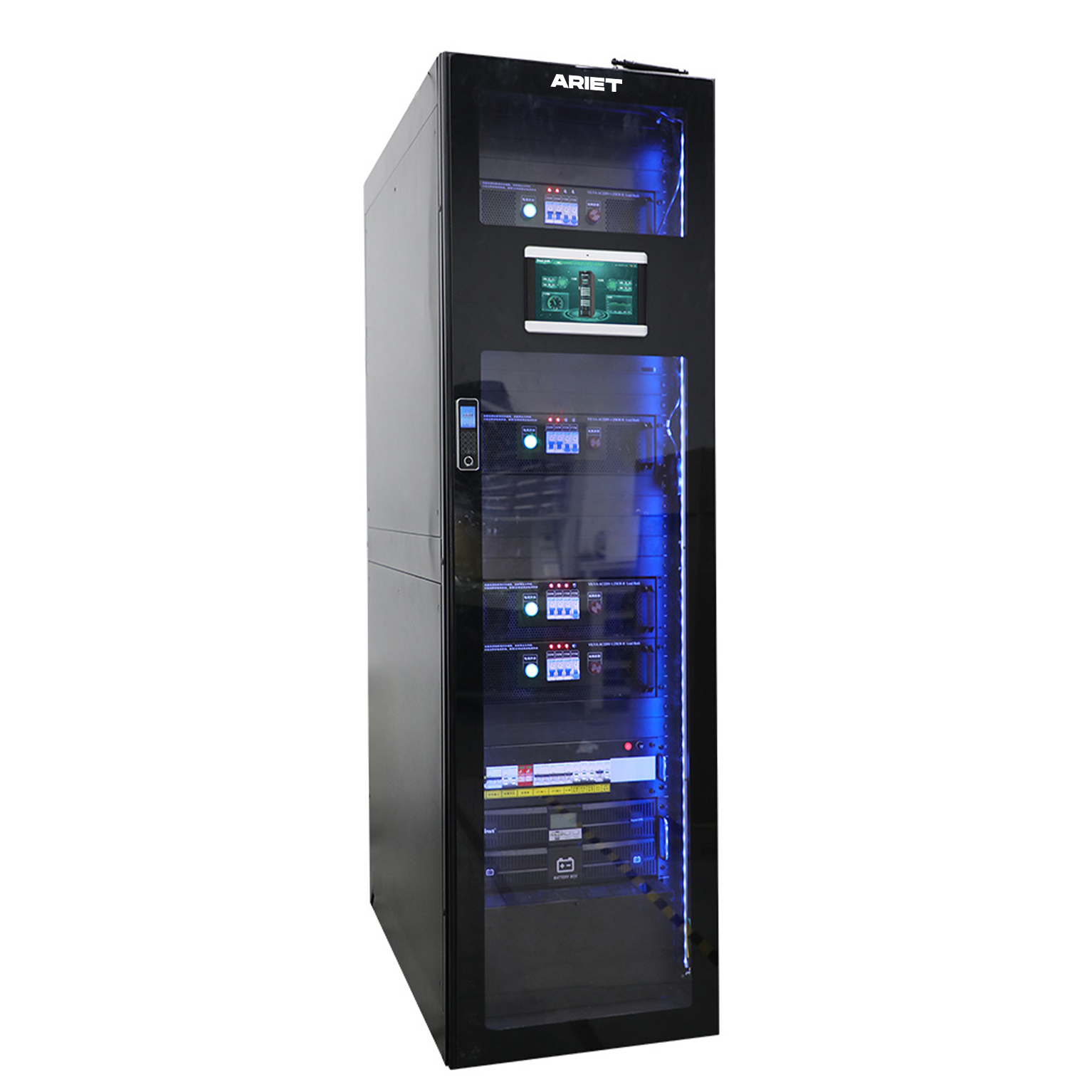

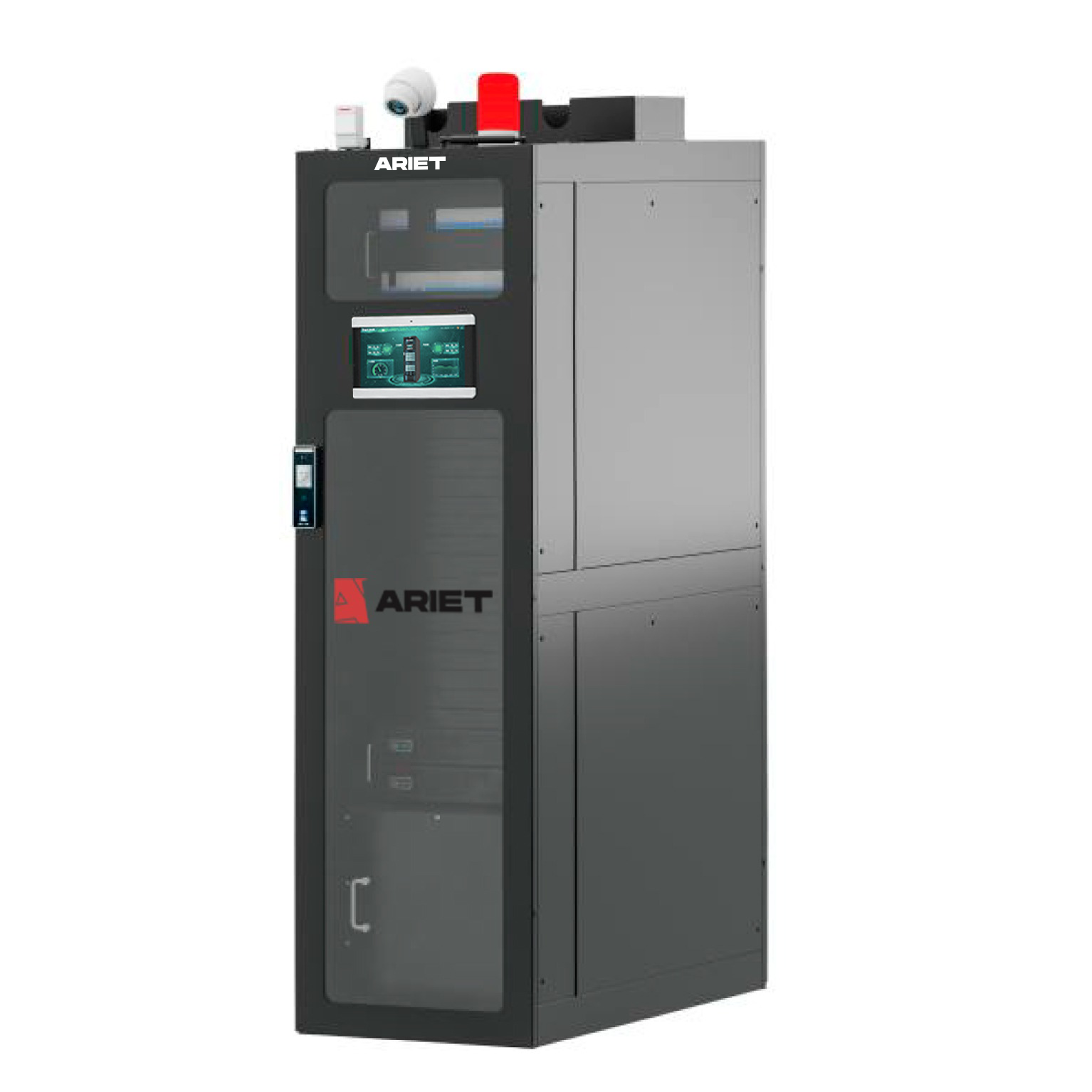

ARIET AR50-M

Compact Data Center — an integrated solution in a standard 19-inch rack.

Submit a request
SKU: AR50-M Category:
Application
  • Server rooms of small and medium-sized enterprises (SMEs), as well as branch offices of large corporations and government organizations.
  • Financial services offices, telecommunications service centers, and base transceiver stations.
  • Gas stations, toll plazas, and smart buildings.

Description

Compact Data Center — an integrated solution in a standard 19-inch rack.

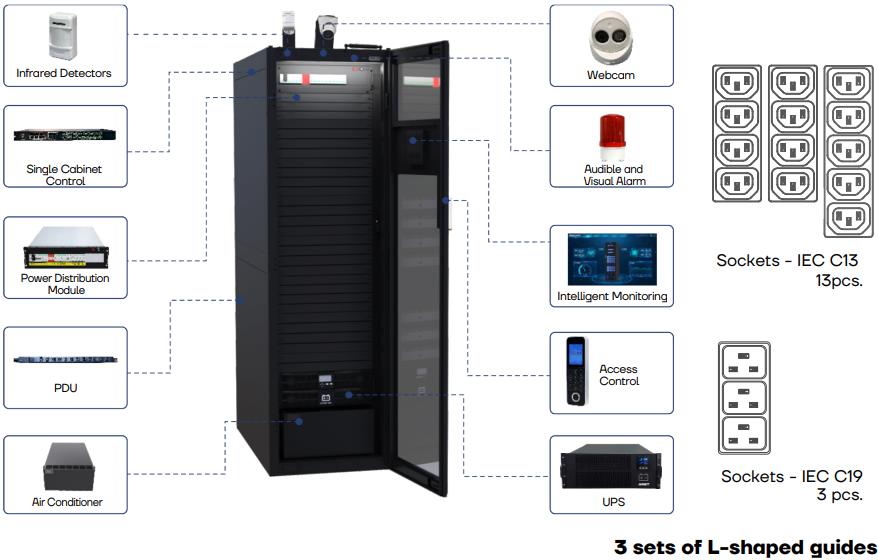

The system includes a UPS, precision cooling, environmental monitoring, access control, and lighting. Thanks to its factory-ready design and pre-configuration, on-site deployment takes minimal time. The compact footprint saves valuable floor space, while the intuitive interface allows for efficient infrastructure management from anywhere in the world.

Technical Specifications - ARIET AR50-M datasheet_En

MODEL AR50-M
IT rated power 3.5 kW
System
Mains 220Vac,50Hz/60Hz
Ambient temperature 0–45 °C
Relative humidity 10–95%
IP Class IP5X
Altitude 1000m, dereating for >1000m
Cabinet
Dimension（W *D*H), mm 600 * 1200 * 2000
Space occupation 42U
Display 10.1’’ touch screen LCD
Lighting Front and rear
Cable entry Top and bottom
Access control system Fingerprint +IC card + Password
Power Supply and Distribution System
UPS T6KRS SPEC UPS 6 kVA with RS485 interface
Battery 16 pcs./7 Ah, 220 VAC
PDU Vertical, 2 pcs.
Distribution module 32A
Dimension 483*700*3U
Monitoring System
Supervision system Intelligent integrated monitoring host
Single cabinet Single cabinet control module
Centralized Monitoring smoke sensor*1
Temperature&humidity sensor*1
Water leakage sensor*1
Webcam (optional)
Infrared detector(optiona)
SMS alarm (optiona)
Emergency Ventilation Emergency pop-up door system
Cooling System
Rated cooling capacity 3,7–7,5 kW
Rated air volume 700-1350m³/h
  1. Data Centers
  2. Telecommunications Systems
  3. Financial systems
  4. Industrial enterprises

Преимущества
Guaranteed quality — all system components are manufactured in strict accordance with domestic and international standards.
Multi-level control — operational safety and reliability are ensured by inspections at every stage, from installation to commissioning.
Versatility of application — the “all-in-one rack” design allows for efficient operation in challenging environments, including dusty and confined spaces.
Ready-made engineering solution — an integrated design and combined delivery eliminate errors associated with the self-design of complex systems.
Data protection against overheating — the automatic door opening system effectively prevents critical overheating, gaining time for backup.
Intelligent monitoring — the built-in smart control system guarantees stable and safe operation of the entire IT infrastructure in real time.
High energy efficiency — the combination of precision cooling and efficient power supply allows for an excellent PUE of 1.30.
Cost optimization — integration of all subsystems in a single enclosure saves floor space and reduces maintenance and remote management expenses.
Advantages
Guaranteed quality — all system components are manufactured in strict accordance with domestic and international standards.
Multi-level control — operational safety and reliability are ensured by inspections at every stage, from installation to commissioning.
Versatility of application — the “all-in-one rack” design allows for efficient operation in challenging environments, including dusty and confined spaces.
Ready-made engineering solution — an integrated design and combined delivery eliminate errors associated with the self-design of complex systems.
Data protection against overheating — the automatic door opening system effectively prevents critical overheating, gaining time for backup.
Intelligent monitoring — the built-in smart control system guarantees stable and safe operation of the entire IT infrastructure in real time.
High energy efficiency — the combination of precision cooling and efficient power supply allows for an excellent PUE of 1.30.
Cost optimization — integration of all subsystems in a single enclosure saves floor space and reduces maintenance and remote management expenses.
